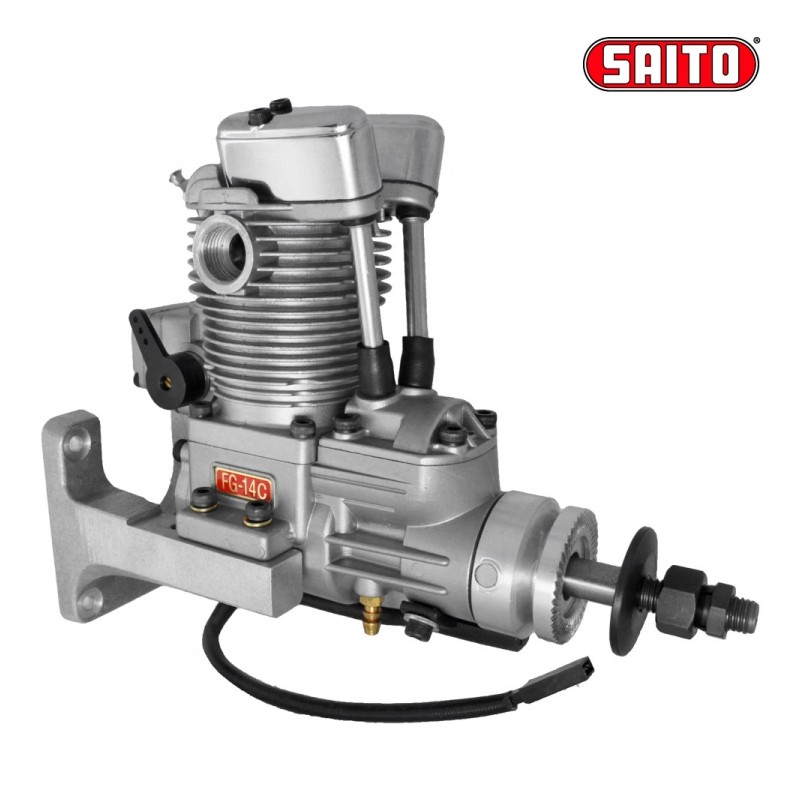

Saito FG-14C 14cc 4-stroke Gasoline Engine
€408.80
Saito FG-14C is the new model modified from FG-14B with new ignition system and drive flange. The dimensional drawing is just the same as FG-14B. The new ignition system comes with the compact case and sensor compared to the previous type.
Displacement: 13.47 cc
Applications: 4-stroke glow .70 class
Bore: 29.0 mm
Stroke: 20.4 mm
Motor weight: 528 g
Muffler weight: 57 g
Ignition system weight: 145 g
Engine mount weight: 124 g
Practical RPM: 1900-9500
Max RPM on Ground (stationary): 9000
Propeller: 13x8" - 14x6"
Static thrust: with APC 13x8 = 2.3 kg & APC 14x6" = 3.2 kg
Fuel: Regular gasoline & oil = 20:1 (volume ratio)
Fuel consumption: aprox 8 cc/min (@ fulll throttle 9000 rpm)
Battery for ignition system: 4.8-6V with more than 1Ah is recommended
Recommended gasoline fuel oils:
Klotz Original TechniPlate®
Klotz R/C Modelube®
Included:
Engine
Motor Mount
Exhaust
Ignition System
3-4 weeks delivery time.
SAFG-14C
