Awesomatix AFS - A12X / A12WC - adjustabe Front Suspension Set

€79.04
Quantity

The optional A12-AFS set is our next-generation front suspension system for the A12X / A12WC platforms.

Its main advantage: you can adjust caster, camber, ride height and droop with the front wheels installed - without changing any shims, caster posts or any disassembly.

Important: The A12-AFS set cannot be used with the standard C1205X or C1201X components.

Key Feature:

- Full front-end tuning without removing the wheels.

- Faster, cleaner adjustments compared to traditional 1/12 pan-car suspensions.

- Compatible with standard 1/12 setup stations or an angle gauge for camber.

- Camber range: ±1.75°

- Selectable caster angles: 3°, 4°, 5°, 6°

- Stepless ride-height adjustment

- Stepless downstop adjustment

Compatibility & Required Parts:

Servo plate and suspension plates are not included.

To run the AFS system, choose the correct AFS suspension plates + a matching AFS servo plate for your needs/conditions.

Suspension / Servo plate pairing:

- C1205AFS → use with C1201AFS

- C1205AFS-1.5 → use with C1201AFS-1.5

- C1205AFS-5.0 → use with C1201AFS-5.0

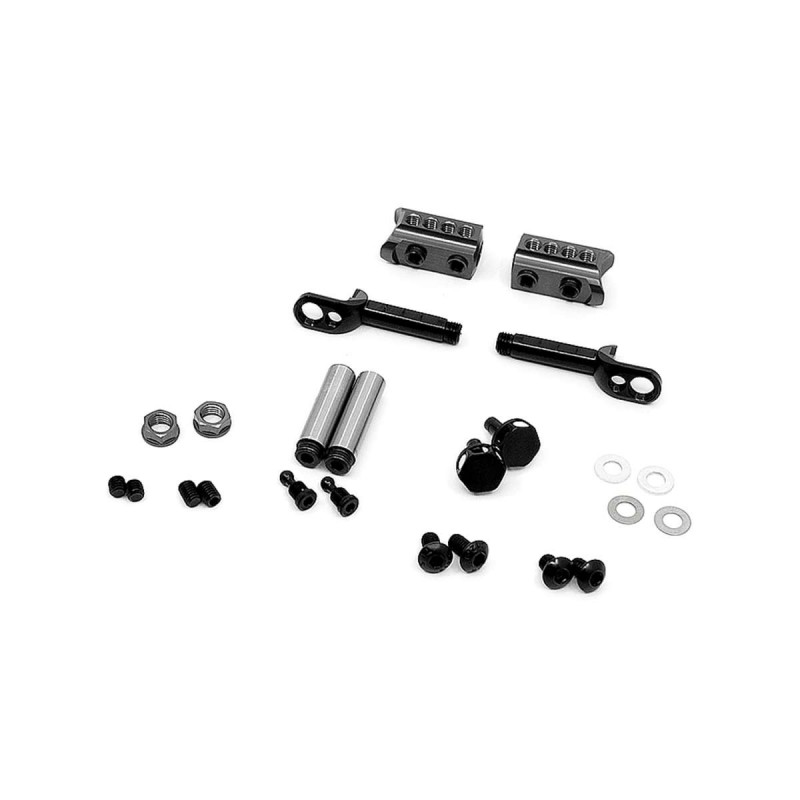

contains:

2pcs ST1220

2pcs ST1263

2pcs ST1267

2pcs ST1268

2pcs AT1216

2pcs DT1215

2pcs SH0.5

2pcs SH0.25

2pcs SB3X4

2pcs SB3X5

2pcs SS3X3 DIN913

2pcs SS3X4 DIN913

40-AFS
