iCharger DX8 Dual Channel 1600W 50A LiPo 2x8S
€283.96

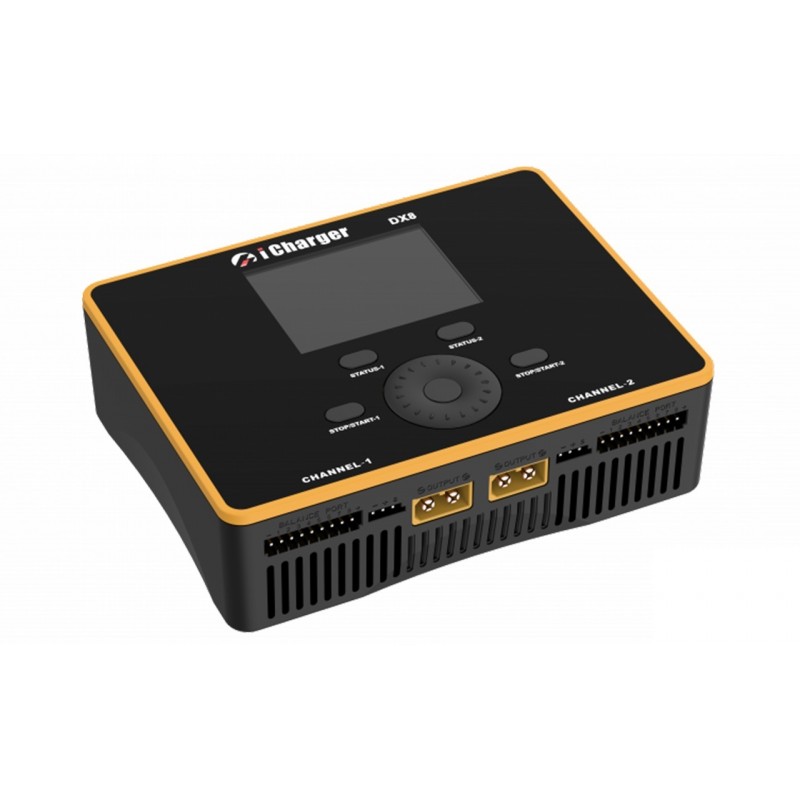

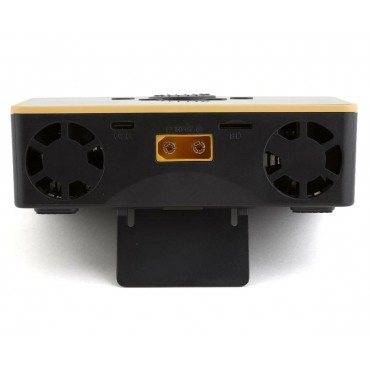

Junsi iCharger DX8
With the new iCharger DX8, the renowned manufacturer Junsi has launched a DUO charger in pocket format.
The new DX8 charger combines the advantages of the well-known Junsi iCharger 308DUO with the portability of a small pocket charger.
Despite the small dimensions of 97.5x128.5x40 mm, no compromises have been made in terms of performance and ease of use. The newly developed rotary wheel has a very good pressure point and facilitates operation enormously.
The technical data is impressive, 1600W charging power (from >25V), 1-8s LiXx cells and up to 30Amp charging current are sufficient even for large batteries with high capacity. Of course, all other battery types such as LiHV, LiIo, NiZn, PB, NiCd or NiMh batteries can be charged.
The discharge power is 70Watt total (45W per output, if only one output is used), but can be increased up to 2100W by means of external load (discharge resistor). Of course, the iCharger DX8 is also capable of regenerative charging. Here, the battery capacity is fed back into the supply battery from a full flight battery, for example. The balancer current of 4 amps total (2A per output) always ensures perfectly balanced cell voltages.
A USB-C PD port for charging smartphones etc (5V/3A, 9V/2A, 12V/1.5A) or for software updates is also built in. The Micro SD slot can be used for logging data, but also for future updates
Also integrated is a servo tester, please note that an external power supply is necessary!
The menu navigation is almost identical to the known Junsi iCharger 308DUO, 406 DUO or 4010DUO. A 2.4" IPS LCD display ensures good readability even in low light.
A manual in English is included with the charger in the form of a CD, the German version can be downloaded from us.
All Junsi chargers of the X and DUO series are developed and approved for use in model making. An industrial use is not intended and therefore not allowed!
INFO:
This Junsi charger requires a cable with XT90 connector to connect to the desired power supply. This cable is NOT included in delivery!
Also a suitable charging cable with XT60 plug is needed for each charging output. Here we recommend the MR33 cable MR33-BCL600-XT60 or MR33-BCL-XT60.
Technical data and features:
Charge current adjustable per output: 0.05-30A
Charge current adjustable in synchronous mode: 0,05-50A
Max. Number of NiCd/NiMH batteries: 1-25 cells
Max. number of LiPo cells: 1-8
External high current discharge synchronous: 1600W
Max. Power: 1600W
Max. charging power Syncron: 1600W
Max. Voltage lead acid batteries: 2-30V
External high current discharge asynchronous: 2100W (Per channel 1050W at 35V/30A)
Balancer equalization current per output: 2A
Charging power max. at one output: 30A
Discharge power per output: 30A
Max. Charge current: 30A asynchronous, 50A synchronous
Balancer equalizing current Synchronous mode: 4A
Discharge current Adjustable for regenerative mode: 50A
Input current limit: 65A
Discharge power Max. in synchronous mode:70W
Max. Discharge power: 70W (Per channel 45W if used separately, if both together max. 70W!)
Max. number of LiHv cells: 8
Input voltage: 9-49V DC
Accuracy Balancer (depending on setting): <10mV
Micro SD card slot: Yes
Length (mm): LxWxH 97,5 x 128,5 x 40 Weight 440g
Power supply integrated: No
Plug type charging output: XT60
Plug type input: XT90
Manufacturer
Shenzhen New Junsi Electronic Co.,Ltd (JUNSI)
5th Floor, Yutian Building, No. 18 Yangtian RD, Xin'an Street, Bao'An District, Shenzhen, Guangdong, PR
CN
sales01@szisd.com
sales01@szisd.com
DX8
