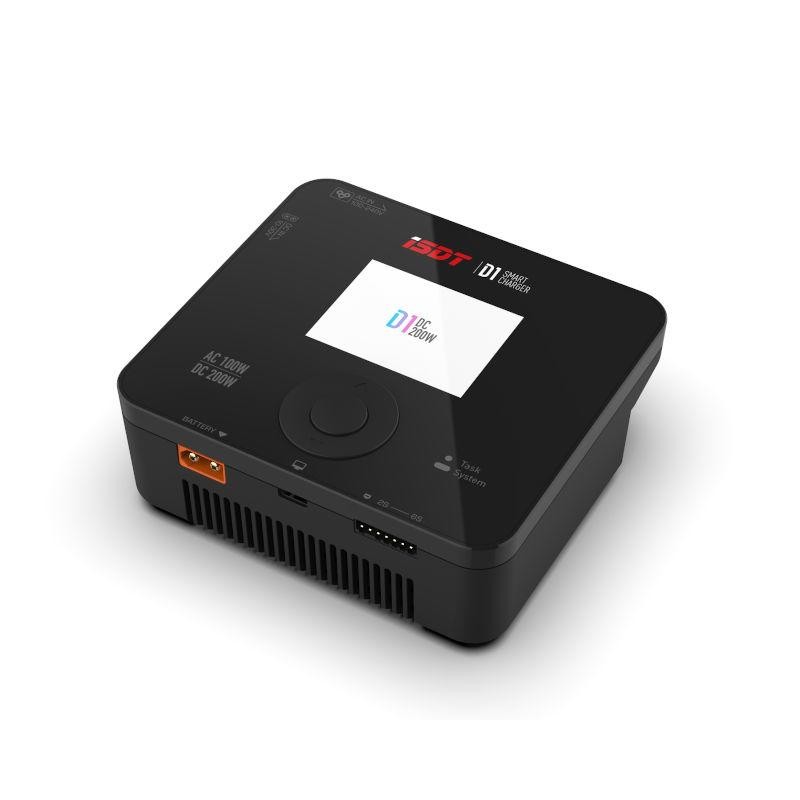

iSDT D1 Smart Charger AC 100W / DC 250W 10A LiPo 1-6S

€147.16
Quantity

AC /DC dual input meet different use requirements. Output ： AC /100W, DC /250W.

AC/DC Safe access

Fool-proof input interface. Smart design The DC input port and AC input port are mutually exclusive. Only one input can be selected in one time, Ensure the safety operation.

Support USB interface to upgrade firmware

Connecting the computer through the USB-C interface, upgrade to the latest firmware Always maintain the advanced performance and features.

scOS 2.0

Upgraded scOS 2.0, not only optimizing the system with a new dimension level, also further improved the system stability. New features including DC Power mode, dark mode, battery scrap and more. Streamline support SmartPower, for further interconnection to ISDT ecosystem product information exchange.

Adjustable Digital Power Supply.

Adjustable Digital Power Supply. In adjustable digital power supply mode, the Max. power is AC 100W / DC 250W. CC: 0.5~10A CV: 2~30V

Lights off in the dark, introducing the dark mode.

scOS 2.0 new dark mode feature, Suitable for low light scenario, System will adjust the interface in dark tone, Reduce light damage to user’s eyes. While remaining the iconic and comfortable charging display style.

Battery waste mode

scOS 2.0 adds battery waste mode. Batteries that need to be scrapped, Put the voltage to 0V in a safe way

1. Charger iSDT D1

2. Manual

Specifications:



Input voltage: AC 100~240V / DC 10~30V

Output voltage: DC 1~35V

Max. input current: DC 14A

Charging current: 0.1~10A

Discharging current: 0.1~1.0A

Balance current: 1.5A/Cell Max

Max. discharging power: 15W

Max. charging power: AC 100W / DC 250W

Abnormal voltage alarm: support

Incorrect cell count setting alarm: support

Supported battery types and cell count: LiFe, Lilon, LiPo 1~6S, LiHv 1-6S, Pb 1-12S, NiMH, Cd 1-16S

Working temperature: 0~40℃

Storage temperature: -20℃~60℃

Dimension: 126x115x49mm

Weight: About 460g

D1
