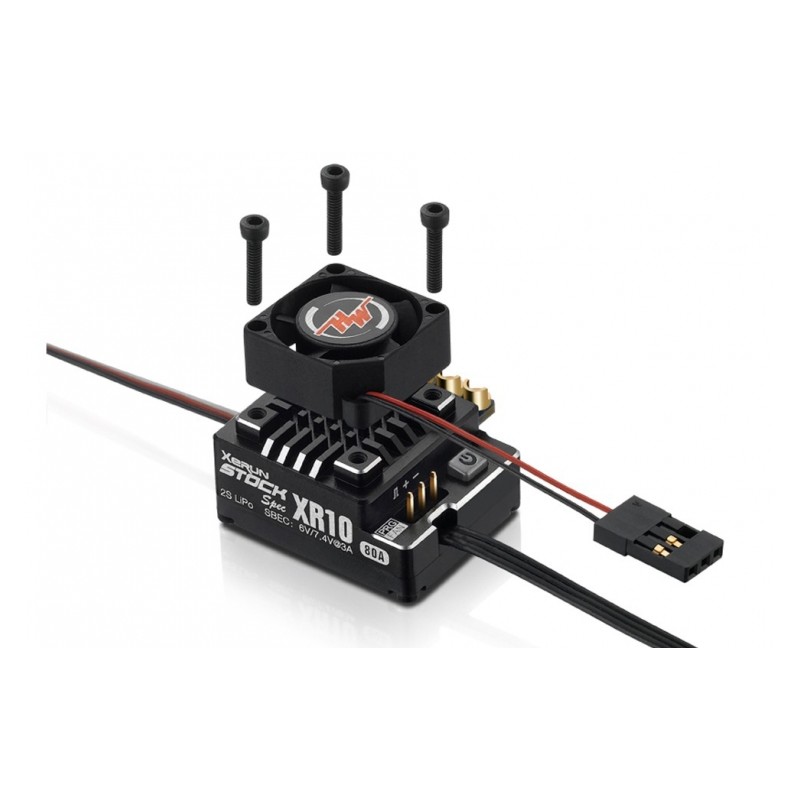

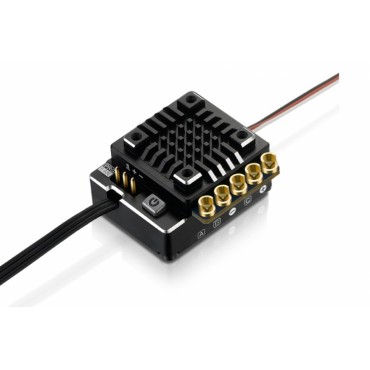

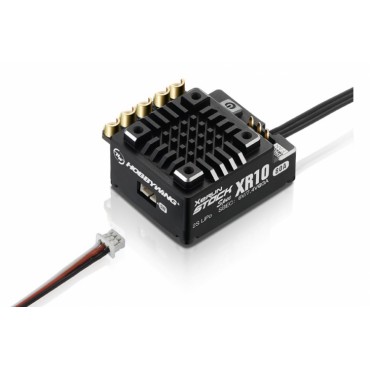

XeRun XR10 Pro-Stock Spec V4
€115.96
Super Internal BEC
The built-in switch mode BEC with a maximum output of 6A and voltage adjustable between 6V and 7.4V allows the user to use various high voltage servos.
Adjustable Throttle & Brake PWM Frequencies
Independent and adjustable throttle & brake PWM frequencies guarantee precise and accurate throttle and brake control for all classes of competitions (esp. the Stock class).
Data-logging Capability
This ESC features the data-logging function which can record the maximum ESC & motor temperatures, the minimum battery voltage, the maximum motor RPM and etc. in real time and allows users to check those data via a LCD program box or WiFi module after each use.
Specifications
Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: No
Cont./Peak Current: 80A/380A
Input Voltage: 2S Lipo/5-7 Cell NiMH
BEC Output: Switch Mode: 6V/7.4V,3A
Wires & Connectors
Input Wires: Black-14AWG-200mm*2
Output Wires: Black-14AWG-200mm*3
Input Connectors: No
Output Connectors: No
(Note: All the wire length above is the original length not the length you see from the outside.)
Fan
Size: 20x20x8mm
Voltage Range: 5-7.4V
Powered by: BEC
ESC Programing via
SET Button on ESC: Not Supported
LED Program Box: Not Supported
LCD Program Box: Supported
WiFi Module: Supported
Program Port: Separate Program Port
Firmware
Firmware Upgrade: Supported
Size & Weight
Size: 31.5x25.6x16.1mm
Weight: 54.5g (w/Wires)
Applications
Motors: SL BL Motors, SD BL Motors
Vehicles: STOCK class of 1/10th Touring Car & Buggy Racing
KV Rating/T Count: 1/10th Touring Cars≥10.5T, 1/10thBuggy≥13.5T
HW30112401
