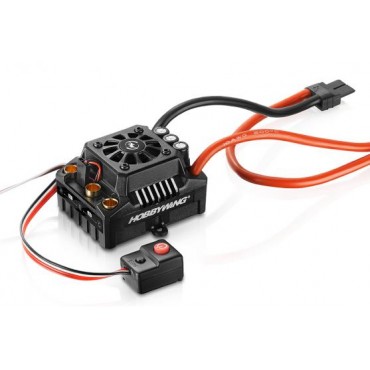

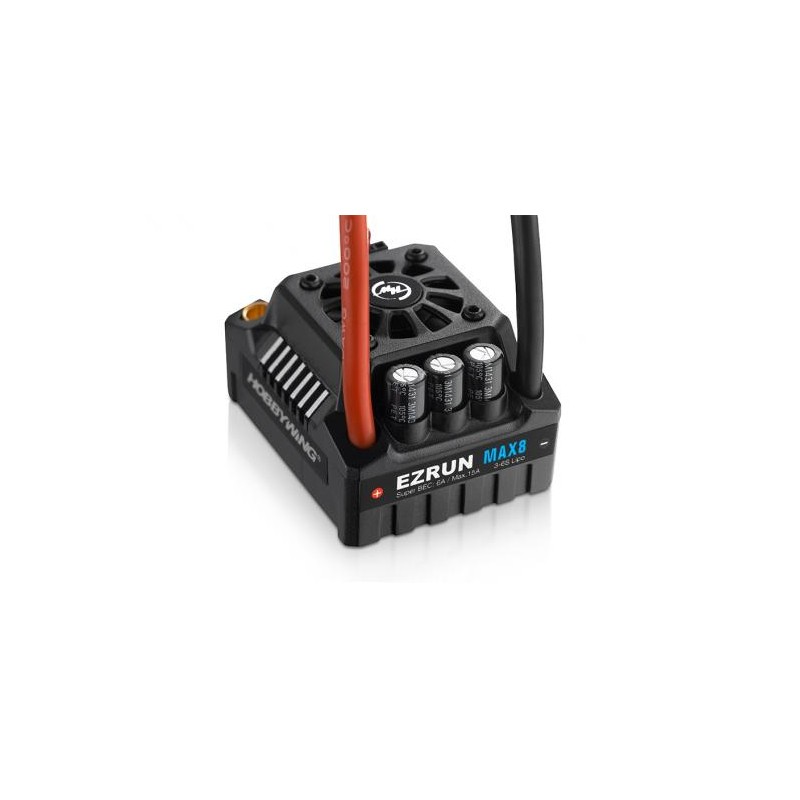

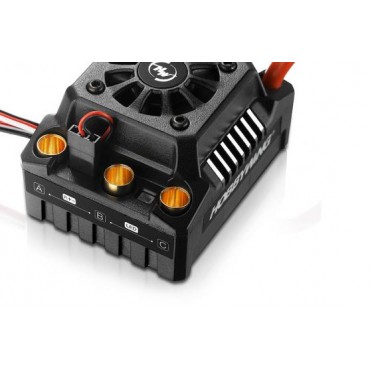

EzRun MAX8 V3 150A ESC 1/8
€111.96
Innovative Double-switch Design
A built-in electronic switch combined with an external detachable switch effectively helps the XR10 Stock Spec avoid some flaws of ordinary or one-switch ESCs. The internal switch makes the wiring convenient, the external switch is really handy when the car shell is installed on and the built-in switch is no longer touchable.
Special Design for STOCK Class Racing
Reliable hardware combined with great software (contains 5 common ready-to-use profiles) creates an ideal power solution to the STOCK class of 1/10 scale touring car, buggy racing.
Programming/Upgrading/Data Reading Wirelessly
With Hobbywing's "WiFi Express" module and iPhone or an Android phone (with the HOBBYWING WiFi Link software installed), the user can remotely program parameters, upgrade firmware and check relevant data of the ESC without leaving the control stand.
Small Size & Light Weight
This ESC is smaller and lighter than the standard version XR10 Pro and it's the mini version of XR10 Pro 160A. The small size (31.5x25.6x16.1mm) makes the installation convenient and the light weight (only 28g w/o wires) provides more weight margin when adjusting the balance of the chassis.
High Reliability & Durability
Reliable hardware combined with advanced software allows the ESC to not only provide extremely high output but also protect itself timely from damages caused by overload. It significantly reduces the possibility of getting damaged by heavy load and improves the reliability and durability.
Great Flexibility & Versatility
The ESC has strong outbreak and stable output, so vehicle can do different moves without a problem, no matter aggressive start-up and wheelie, 720-degree flip (note 1), high speed running on straight tracks or flying over slopes. It always provide the power more than sufficient. Besides, driver can adjust relevant parameters for smooth and soft start-up.
Note 1: Not every vehicle can do the 720-degree flip because of different chassis design. It’s known that HPI SAVAGE can do this move.

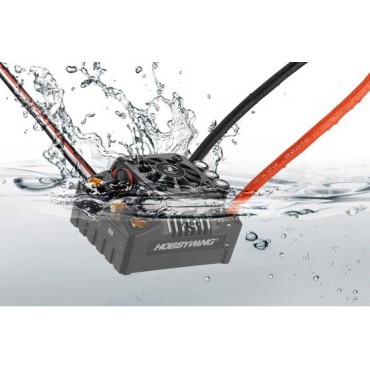

Applicable to All Weather Conditions
Outstanding waterproof and dust-proof capability makes the ESC applicable to all weather conditions, no matter the track is covered with dust, gravel, snow or puddles.
Super Built-in BEC
The world’s 1st 1/8th scale ESC adopted the super built-in BEC with the max. output current of up to 15A and switchable output voltage (6V/7.4V). It can drive different servos, high voltage servos at ease and bring amazing control feel to drivers.
Advanced and Secure Electronic Switch
The electronic switch with the lifespan of over 50000 times of switching on & off features a completely waterproof, dust-proof and shock-resistant design, completely solved problems like stuck reed and rust contact points caused by dust and moisture, switching off automatically caused by violent dash (like landing after flying over slopes) conventional mechanical switches often have.
Plug and Play
Standard 6.5mm gold-plated connectors at the ESC’s output end are perfectly compatible with stock motor connectors of many popular 1/8th scale monster trucks like TRAXXAS’s and HPI’s. Moreover, TRAXXAS style or DEANS/T plug(s) have been soldered to the ESC’s input end for different battery connectors, driver can plug and play and free from possible re-soldering work.
For perfectly matching the mounting holes on TRAXXAS chassis, we have added some mounting holes to the ESC case accordingly.
Wide Applicability
The ESC provides the optimal upgrade solution for many popular 1/8th scale monster trucks like TRAXXAS E-REVO & E-MAXX, HPI SAVAGE, and THUNDER TIGER E-MAT. It’s also applicable to other trucks and buggies.
Almost Maintenance Free
The whole ESC except the cooling fan is basically maintenance free. Besides, the fan has also adopted the special anti-shock design, reduced damage brought by frequent jumps of the vehicle, greatly reduced maintenance work to the fan.
Specifications
Scale: 1/8th
Brushed/Brushless: BL
Sensored/Sensorless: SL
Waterproof: WP
Cont./Peak Current: 150A/950A
Input Voltage: 3-6S LiPo/9-18 Cells NiMH
BEC Output: Switch Mode: 6V/7.4V, 6A
Wires & Connectors
Input Wires: Red-10AWG-200mm*1/ Red-10AWG-150mm*1/ Black-10AWG-150mm*1
Output Wires: Black-10AWG-200mm*3
Input Connectors: Traxxas Plug
Output Connectors: 6.5mm Famale Gold Connectors (pre-soldered onto the PCB)
(Note: All the wire length above is the original length not the length you see from the outside.)
Fan
Size: 30x30x10mm
Voltage Range: 5-7.4V
Powered by: Powered by BEC
ESC Programing via
SET Button on ESC: Supported
LED Program Box: Supported
LCD Program Box: Supported
WiFi Module: Supported
Program Port: FAN/Program Port
Firmware
Firmware Upgrade: Supported
Size & Weight
Size: 59.8x48.0x36.8mm
Weight: 174g
Applications
Motors: SL BL Motors/SD BL Motors(only in SL mode)
Vehicles: 1/8thTouring Car/Buggy/Truck
KV Rating/T Count: 4S LiPo:KV≤3000;/6S LiPo:KV≤2400(40XX Series of Motors)
HW30103201
