Holybro DroneCAN H-RTK F9P Rover (42cm)

€383.20

Quantity

Description
Product Details

Lead Time: 2-4 weeks

Order on demand

The DroneCAN H-RTK F9P is the latest differential high-precision GNSS positioning system from Holybro. It has adopted the DroneCAN protocol for communication. It provides multi-band RTK with fast convergence times and reliable performance, concurrent reception of GPS, GLONASS, Galileo and BeiDou, and a fast update rate for highly dynamic and high volume applications with centimeter-accuracy.

With the adoption of the DroneCAN Protocol, it has up to an 8 Hz navigation update rate, upgradeability, noise immunity, real-time features, and is more robust than UART due to its increased resistance to electromagnetic interference. It does not occupy any serial port of the flight controller, and multiple CAN devices can be connected to the same CAN bus via a hub.

The DroneCAN-F9P uses a u-blox ZED-F9P module, a BMM150 compass, and a tri-colored LED indicator, and is equipped with the STM32G4 processor running at 170 MHz with 512 KByte Flash and 96KByte RAM. It supports DroneCAN firmware upgrade via the DroneCAN GUI Tool. It is compatible with the open source Pixhawk series flight controller.

RTK Testing & Comparison: Big GPS Round Up by Andrew Tridgell (Ardupilot)

Features

We have designed two models of DroneCAN H-RTK F9P for you to choose, each with different size and antenna design to meet different customer needs.

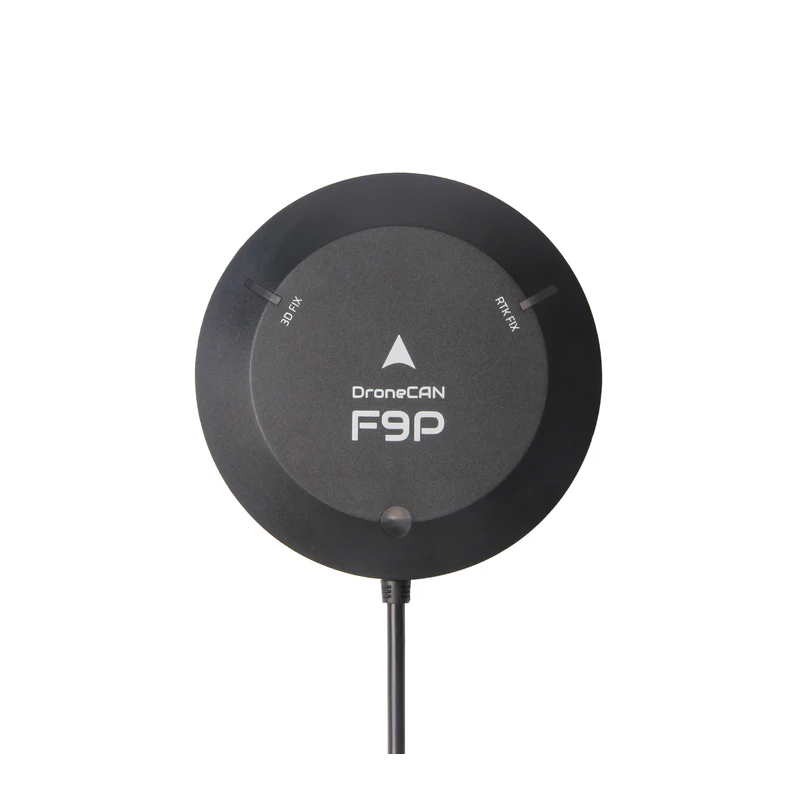

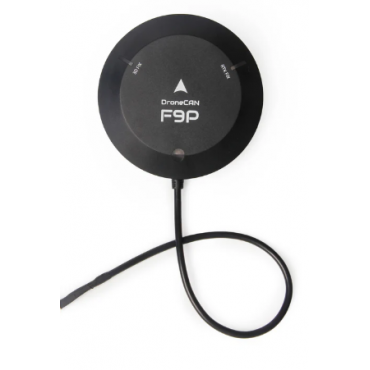

DroneCAN F9P Rover

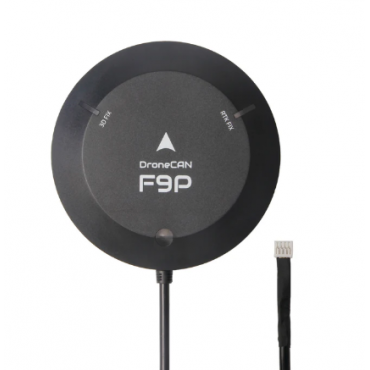

The Rover model has a flatter profile and stronger water resistance. It uses a dual band patch antenna and comes with an integrated cable to connect to the CAN bus. It excels in spaces where there are few obstructions.

DroneCAN F9P Helical

This model uses a helical antenna, which has slightly better performance in space with obstructions than the Rover version. The antenna of this module can either be attached to the module directly or connected via a SMA cable, giving you the ultimate flexibility. It also has a UART2 port exposed, allowing you to do YAW/Heading (aka moving baseline).

You can find the purchase link of this product here

This model can be used either on the rover (aircraft) or as a base station. However, when used as Base Station, RTK communicate with the Ground Control Station via USB, so the DroneCAN protocol is not used. You can consider using the standard H-RTK F9P Helical or Base for your Base Station.

Specification & comparison

DroneCAN H-RTK F9P Rover

DroneCAN H-RTK F9P Helical

Intended Application

Rover (aircraft) only

Rover (aircraft) or Base station

GNSS Receiver

U-blox ZED-F9P high precision GNSS module

Antenna

Ceramic Patch Antenna with 20dB LNA

Helical Antenna with 36dB LNA

Processor

STM32G473

Magnetometer

BMM150 or IST8310

GNSS

BeiDou, Galileo, GLONASS, GPS / QZSS

GNSS Band

B1I, B2I, E1B/C, E5b, L1C/A, L1OF, L2C, L2OF

Positioning accuracy

3D FIX: 1.5 m / RTK: 0.01 m

Communication Protocol

DroneCAN 1Mbit/s

Antennas Peak Gain (MAX)

L1: 4.0dBi

L2:1.0 dBi

L1: 2dBi

L2: 2dBi

Time-TO-First Fix

Cold start: ≤29s

Hot start: ≤1s

Cold start: ≤25s Hot start: ≤1s

Navigation Update Rate

RAW: 20Hz Max RTK: 8Hz Max

Moving Base RTK: 5Hz Max

Cable Length

27cm or 50cm

N/A

Antenna Connection Type

N/A

Board: SMA female Antenna: SMA male

Working voltage:

4.75V~5.25V

Current Consumption

~250mA

Dimensions

Diameter: 80mm Height: 20mm

Board: 51.1*35*22.9mm Antenna Diameter: 27.5mm Antenna height: 59mm

Weight

123g

58g

Operating Temperature

-20℃ to 85℃

Reference 12035
