SIDERION Pioneer F20P

€268.68
Quantity

Triple-band L1/L2/L5 ZED-F20P GNSS RTK module. Onboard RM3100 and BMP581 sensors.

High-Precision Multi-Band GNSS Module for Professional Applications

Elevate your projects with the Pioneer F20P, a high-performance, multi-band GNSS module powered by the u-blox ZED-F20P chipset. Designed for sub-centimeter-level accuracy, this module supports RTK, PPP, and PPP-RTK, making it ideal for drone navigation, industrial automation, and precision agriculture.Its compact form factor and low-voltage operation (<5V) ensure seamless integration into custom PCBs, drones, and autonomous systems.

What is included:

1x Pioneer F20P

2x 6P JST-GH

Key features & Specifications

Feature Specification

Supported constellations GPS/SBAS, Galileo, BeiDou, QZSS, GLONASS, NavIC

GNSS bands L1 / L2 / L5

Position accuracy 0.6mm (RTK)

Convergence time <7 seconds (RTK)

Position update rate Up to 25Hz

Timepulse (PPS) Configurable: 0.25 Hz to 10 MHz

Antenna Input Active Antenna

Interface USB, UART, SPI, GPS

Correction services NMEA v4.11, UBX binary, RTCM v3.4, SPARTN v2.0.2

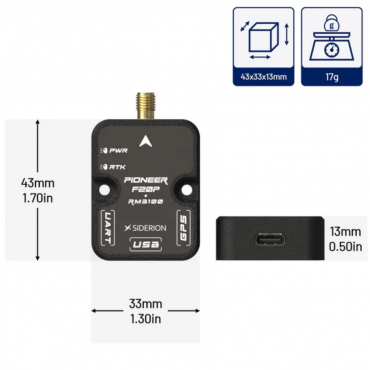

Physical Weight: / Size:

Why Choose the Pioneer F20P?

✅ Centimeter-Level Accuracy: Achieves 6mm (0.6cm) precision with multi-band RTK GNSS.

✅ Triple-Band L1/L2/L5 Technology: Reduces ionospheric interference, ensuring faster convergence and superior accuracy compared to single-band GNSS receivers.

✅ Fast Convergence: Sub-7-second RTK convergence for rapid, reliable positioning.

✅ Versatile Correction Support: Compatible with RTCM, VRS, and Network RTK for flexible, high-accuracy positioning.

✅ Compact & Energy-Efficient: Perfect for OEM integration and low-voltage applications.

✅ Base or Rover Operation: Use as a standalone receiver or in a base-rover RTK configuration.

✅ Anti-Jamming & Spoofing Protection: Advanced interference suppression for secure operation in challenging environments.

✅ Plug-and-Play Compatibility: Seamlessly integrates with any autopilots via a 6-pin JST-GH connector, with support for UART, I2C, USB, and MAVLink protocols.

✅ Fast & Reliable: Up to 25 Hz update rate for real-time responsiveness in dynamic applications.

Ideal Applications

➤ Drone surveying & mapping

➤ Precision agriculture

➤ Autonomous vehicle navigation

➤ Robotics & industrial automation

➤ Aeronautical & UAV systems

SID-GNSS-RTK-PIONEER_F20P
