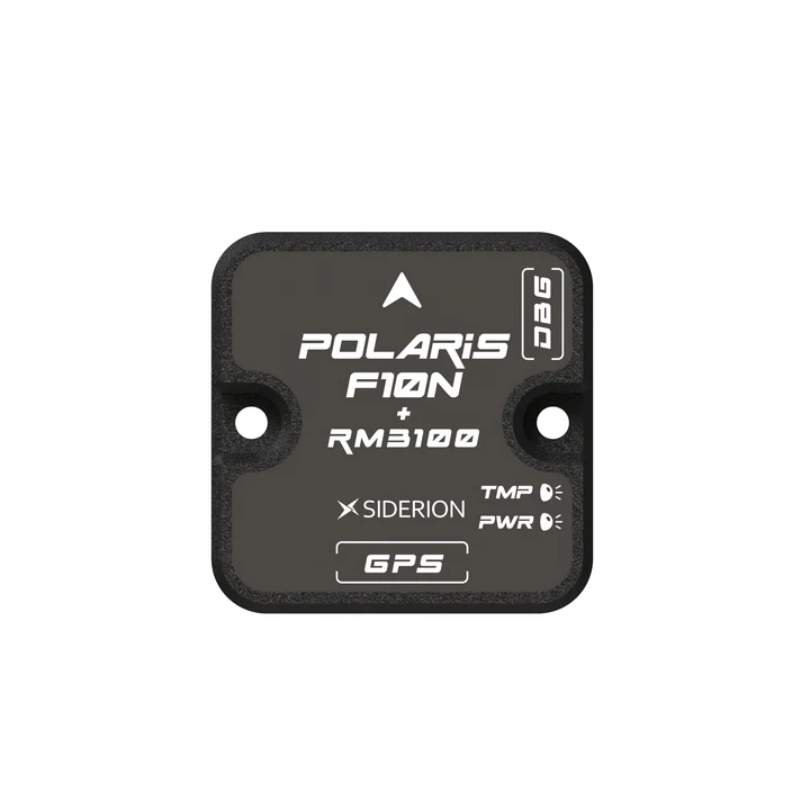

SIDERION Polaris F10N

€134.28
Quantity

Compact dual-band L1/L5 multipath mitigation standard GNSS device based on U-blox DAN-F10N. Onboard RM3100 magnetometer and BMP581 barometric sensor.

High-Precision Multi-Band Standard GNSS Module for Professional Applications

What is included:

1x Polaris F10N

1x 6P JST-GH

1x 4P JST-GH

Main features

Key features & Specifications

Feature Specification

Supported constellations GPS, Galileo, BeiDou, QZSS, NavIC

GNSS bands L1 / L5

Position accuracy 1m (CEP)

Time to First Fix (TTFF) <28s (cold start)

Position update rate Up to 20Hz

Timepulse (PPS) Configurable: 0.25 Hz to 10 MHz

Connectivity UART, MavLink

Interface

Why Choose the Polaris F10N?

✅ Centimeter-Level Accuracy: Achieves 6mm (0.6cm) precision with multi-band RTK GNSS.

✅ Triple-Band L1/L2/L5 Technology: Reduces ionospheric interference, ensuring faster convergence and superior accuracy compared to single-band GNSS receivers.

✅ Fast Convergence: Sub-7-second RTK convergence for rapid, reliable positioning.

✅ Versatile Correction Support: Compatible with RTCM, VRS, and Network RTK for flexible, high-accuracy positioning.

✅ Compact & Energy-Efficient: Perfect for OEM integration and low-voltage applications.

✅ Base or Rover Operation: Use as a standalone receiver or in a base-rover RTK configuration.

✅ Anti-Jamming & Spoofing Protection: Advanced interference suppression for secure operation in challenging environments.

✅ Plug-and-Play Compatibility: Seamlessly integrates with any autopilots via a 6-pin JST-GH connector, with support for UART, I2C, USB, and MAVLink protocols.

✅ Fast & Reliable: Up to 25 Hz update rate for real-time responsiveness in dynamic applications.

Ideal Applications

➤ Drone surveying & mapping

➤ Precision agriculture

➤ Autonomous vehicle navigation

➤ Robotics & industrial automation

➤ Aeronautical & UAV systems

SID-GNSS-POLARIS_F10N
