GOKU GM10 Nano V3 GPS w/compass
€19.80

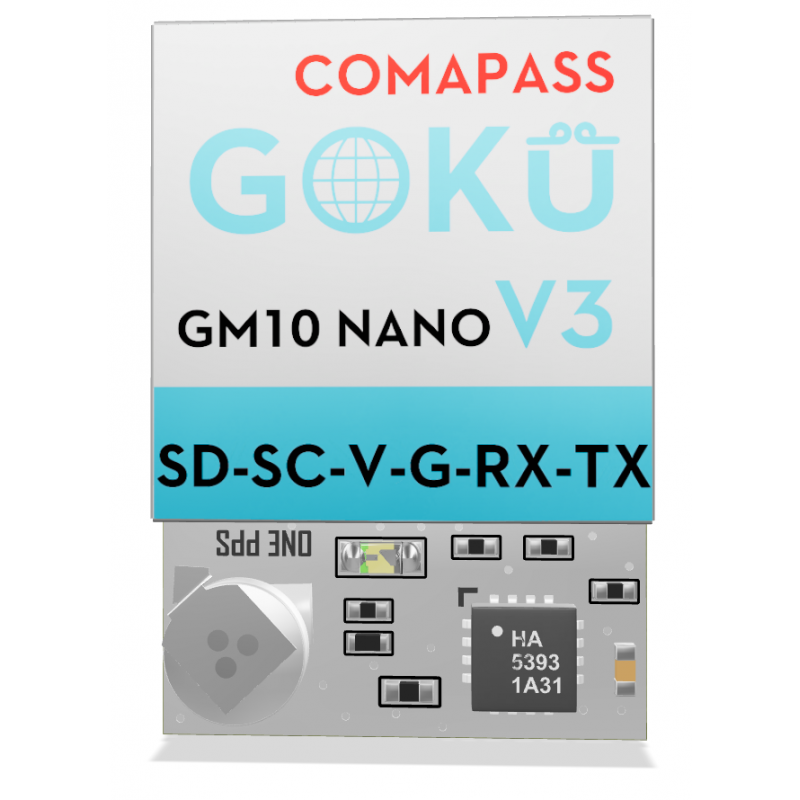

GOKU GM10 Nano V3 GPS w/compass

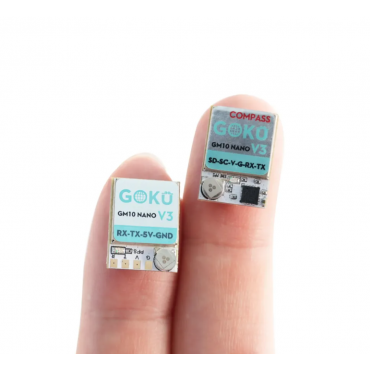

⭕Only 2.6g nano size GPS
⭕With a compass and a plug.
⭕Plug and play, no need for soldering.
The GOKU GM10 V3 GPS series! With the latest M10050 GNSS chip, it offers ultra-accurate positioning and faster star search speeds than the previous GM8 V2.
The GOKU GM10 Nano V3 GPS with compass is designed for convenience, featuring a plug-and-play setup without the need for soldering.
Experience cutting-edge technology for precise navigation. Whether you're an outdoor enthusiast or a professional, GOKU ensures reliability, accuracy, and effortless usability. Upgrade to the GOKU GM10 V3 GPS series and elevate your navigation experience.
Note: The chip of GOKU GM10 V3 GPS is M1005. Only BF4.3x version firmware can use Ublox protocol. BF4.2x and earlier firmware can only use NMEA protocol But there is no difference in performance between the two protocols
BETAFLIGHT： Use firmware above 4.3.0 INAV： Use the latest 6.0.0 configurator, the latest firmware above 5.0.0
Description
Brand: FLYWOO
Model: GM10 NANO V3 GPS w/compass
Dimension :12mm*17mm*5mm

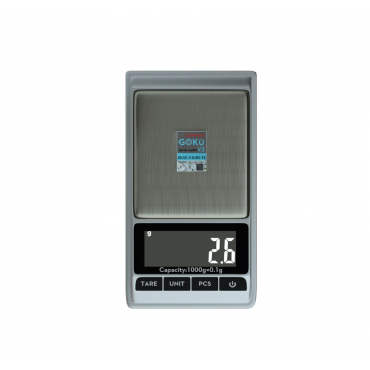

Weight : 2.6g
Connector : 6pins Pad
Features:
1、GPS Module. Three Modules.
2、6pins Pad, ultra light weight
3、With a compass and a plug.
4、Plug and play, no need for soldering.
Specification
Electrical Characteristics
Chipset : M10050(Tenth Generation Chip)
Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Default Protocol : GPS,Galileo,BeiDou
Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
Channels : 72 Searching Channel
Sensitivity
Tracking : -162dBm
Reacquisition : -160dBm
Data and Update Rate
Support Rate : 4800bps to 921600bps,Default 115200bps
Data Level : TTL or RS-232,Default TTL level
Data Protocol : BF4.3.X(UBLOX)/BF4.2.X(NMEA)
Output frequency : 1Hz-10Hz，Default 10Hz
Operational Limits
Altitude : 50,000m Max
Velocity : 500m/s Max
Acceleration : Less than 4g
Power consumption
VCC : DC Voltage ：3.3-5V
Operating temp : -40 °C ~ +85°C
Storage Temp : -40°C ~ +105°C
Indicator :
PPS LED: RED.
PPS LED lights up when the GPS is not fixed and turns off when it is fixed.
The Module’s Pins: RX TX 3.3-5V GND

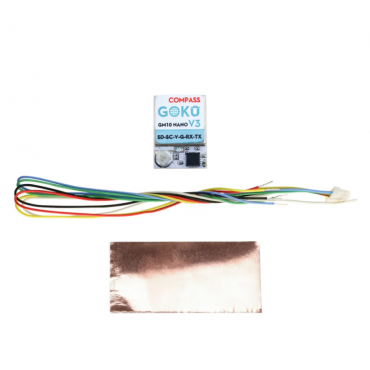

Includes
1x GM10 NANO V3 GPS w/compass
1x 100mm Cable
1x Copper Foil
