SIDERION MS4525 Airspeed

€78.28
Quantity

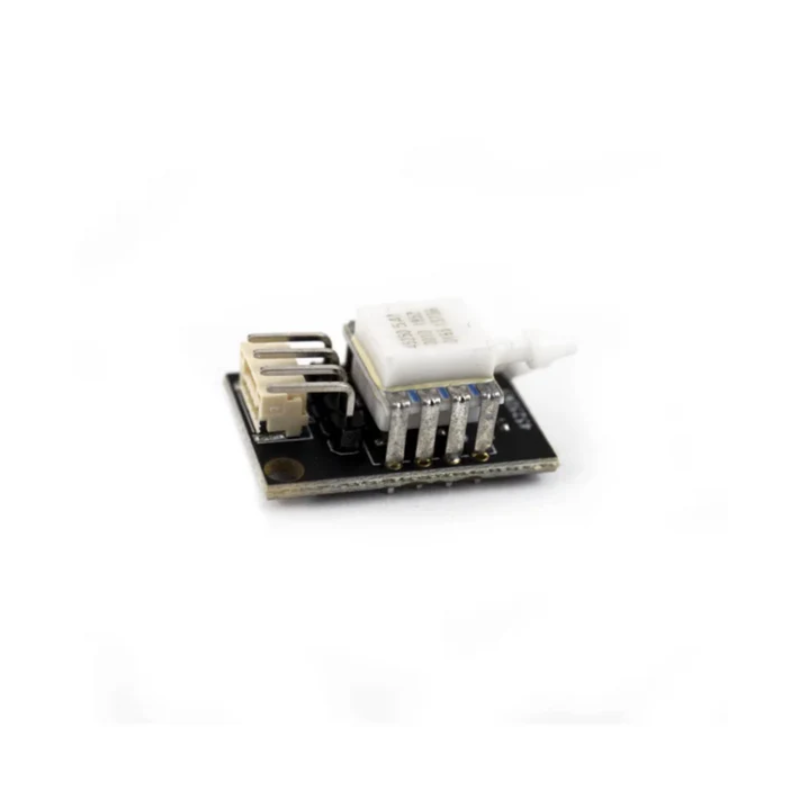

The MS4525DO is a small, ceramic based, PCB mounted pressure transducer from TE Connectivity.  The transducer is built using our proprietary UltraStable™ process and the latest CMOS sensor conditioning circuitry to create a low cost, high performance digital output pressure (14bit) and temperature (11bit) transducer designed to meet the strictest requirements from OEM customers. This sensor is compatible Pixhawk and Ardupilot.

What is included:

1x MS4525 Airspeed

1x 4P JST-GH

Featuring a Measurement Specialties 4525DO sensor, with 1 psi measurement range (roughly up to 100 m/s or 360 km/h or 223 mp/h), the Airspeed Sensor Kit enables a resolution of 0.84 Pa, with data delivered at 14 bits from a 24 bit delta-sigma ADC. It also measures temperature to allow calculation of true airspeed from indicated airspeed using the MS5611 static pressure sensor. Not influenced by the heat of nearby processing components, it is much closer to the air temperature than with previous analog sensor setups.

SID-SENS-MS4525
