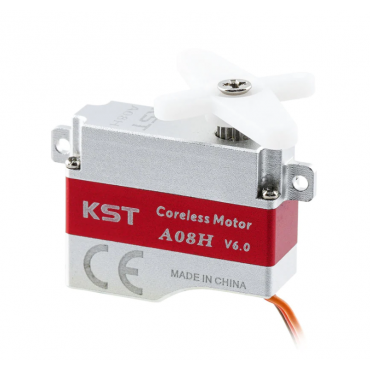

KST A08H V6.0 Coreless Metal Gear HV Micro Servo for Glider DLG

€42.39
Quantity

The new KST A08H V6 is the horizontal tab (wing mounting tab) version of the KST A08. It is a great low/medium/high voltage fully metal cased servo weighing only 8g (0.3 oz). Unlike the X08H the A08H incorporates a complete case that covers the motor, making the servos much tougher and less susceptible to water ingress, handling and crash damage. Despite this, the A08H servo is actually lighter and has more torque than the X08H. The A08H is also slightly smaller than the X08H, making it suitable for very tight installations.

The KST A08H is especially good for ailerons on discus launched gliders, electric racers, and all models with thin flying surfaces. Despite being only 8 mm thick the powerful coreless DC motor and gearing provide good torque and high speed. The A08H can be operated from a voltage as low as 3.8V (1S LiPo) or as high as 8.4V (2S LiPo). KST servos have excellent geartrain machining tolerances, and this servo is completely slop free, and equal to products costing twice as much. Despite not having an -MG moniker this servo has metal gears and is very tough.

The KST A08H V6.0 version is fully programmable using KST Tool Card #1/ KST Tool Card #5

A08H V6.0 Coreless Metal Gear HV Servo 3.2kg.cm 0.09sec/60degree for Glider DLG

Features

Compact and lightweight design

Excellent torque and speed

Programmable

Excellent heat dissipation

Designed for high-performance RC Gliders

Specification

Item: A08H V6.0 Micro Servo

Rated Voltage: DC7.4V

Voltage Range: DC3.8V-8.4V

Torque: 1.4Kgf.cm@3.8V / 2.2Kgf.cm@6.0V / 2.8Kgf.cm@7.4V / 3.2Kgf.cm@8.4V

Speed: 0.20sec/60°@3.8V / 0.13sec/60°@6.0V / 0.10sec/60°@7.4V / 0.09sec/60°@8.4V

Working Frequency: 1520μs/333Hz

Default Travel Angle: ±60° =120° Total

Temperature Range: -10℃.......+65℃

Programmable: Yes

Case Material: Aluminium Alloy

Motor Type: Coreless DC Motor

Gear Set Material: Hardened Steel

Position Sensor: Potentiometer

Ball Bearing: 2BB

Case Dimensions: 23.5mm*8mm*19mm±0.2mm

Weight: 7g±10%

HP0023.0163-H
