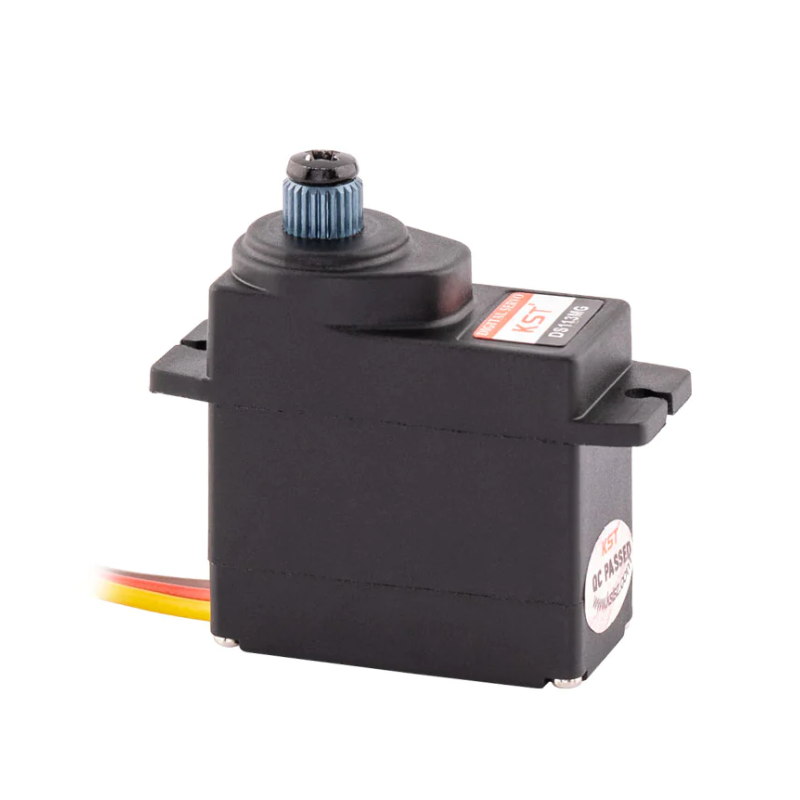

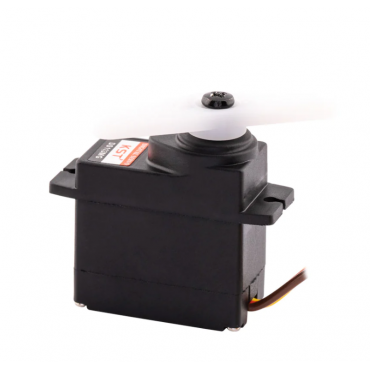

KST DS113MG V6.0 Digital Metal Gear Micro Servo for Small Size Electric RC Plane and Glider
€14.39
The new DS113MG V6.0 digital servo power with powerful torque and amazing speed in compact and lightweight design, make it excellent for small-size electric RC plane and glider fuselage. DS113MG V6.0 servo can boast a brilliant 3.5kgf.cm torque and and super fast 0.09sec/60° speed at 8.4V with great precision and reliability.
Weighing only 12g makes DS113MG V6.0 a great servo for small-size electric RC plane and glider fuselage use. The DS113MG V6.0 servo is designed for use with a 2S LiFe or 2S LiPo battery and it can run directly from a 2S LiPo without needing a regulator. Additionally, the newly added program feature can improve your flight experience to the next level. The DS113MG V6.0 is the high voltage replacement of the original DS113MG servo.DS113MG V6.0 Servo
Features
High Quality and Competitive Price
Support for 4.8V-8.4V Voltages
Programmable
Excellent Heat Dissipation
Compact and Lightweight Design
Ultra High Torque & Excellent Speed
Ideal for Small-size Electric RC Plane and Glider Fuselage
Specification
Item: DS113MG V6.0 Digital Metal Gear Servo
Rated Voltage: DC6.0V
Voltage Range: DC4.8V-8.4V
Torque: 2.0Kgf.cm@4.8V / 2.5Kgf.cm@6.0V / 3.0Kgf.cm@7.4V / 3.5Kgf.cm@8.4V
Speed: 0.13sec/60°@4.8V / 0.11sec/60°@6.0V / 0.10sec/60°@7.4V / 0.09sec/60°@8.4V
Stalling Current: 1.00A@4.8V / 1.20A@6.0V / 1.40A@7.4V / 1.60A@8.4V
Working Frequency: 1520μs/333Hz
Default Travel Angle: ±50°=100° Total
Temperature Range: -10℃.......+65℃
Soft Start: Programmable
Programmable: Yes
Motor Type: Core Motor
Case Material: Plastic
Gear Set Material: Metal Gear
Position Sensor: Potentiometer
Ball Bearing: 1BB
Case Dimensions: 24mm*12mm* 26.3mm±0.2mm
Weight: 12g±10%
HP0023.0228
