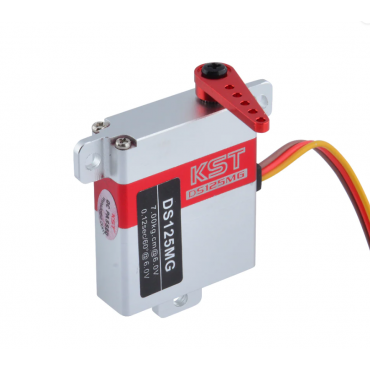

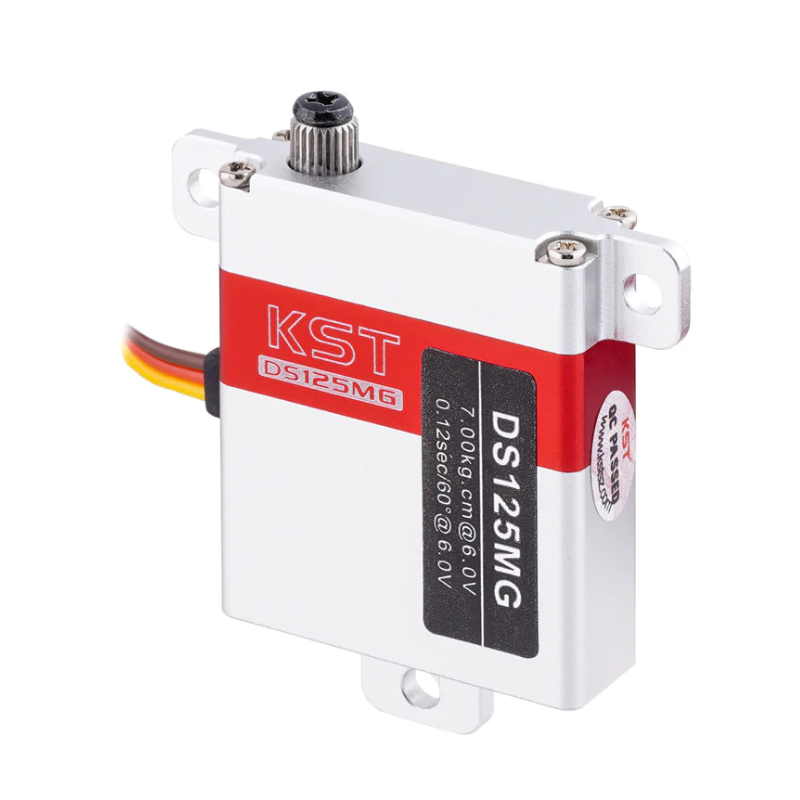

KST DS125MG Digital Metal Gear Servo for Glider Wing
€33.59
The KST DS125MG Wing Servo is an amazingly good metal cased servo. It is exactly the same size and has 90% of the performance and build quality of the market leader, for less than half the price. Like the more expensive servo it has no geartrain slop.
At only 10mm thick this great wing-servo can easily fit in thin glider and jet wings. With a massive 7Kgf.cm torque the KST DS125 is appropriate for F3F, F3B, F3J, F5J, all fast gliders, and jets. No longer supplied with metal output arms.
DS125MG Servo
Features
Hardened Steel Gears
Extreme torque and Excellent speed
CNC aluminium case
Two Ball Bearings
Programmable
Specification
Item: DS125MG Digital Metal Gear Servo
Rated Voltage: DC4.8V
Operating Voltage: DC4.8V-6.0V
Case Dimensions: 30mm*10mm*35.5mm±0.2mm
Torque: 7.0Kgf.cm @ 6.0V / 6.0Kgf.cm @ 4.8V
Speed: 0.12sec/60deg @ 6.0V / 0.15sec/60deg @ 4.8V
Working Frequency: 1520μs/333Hz
Default Travel Angle: ±50° = 100° Total
Temperature Range: -10℃……+65℃
Soft Start: Programmable
Programmable: Yes
Case Material: Aluminum Alloy
Motor: Coreless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer
Weight: 28g±10%
Recommend Servos: DS125MG Servo, DS135MG Servo, DS145MG Servo
