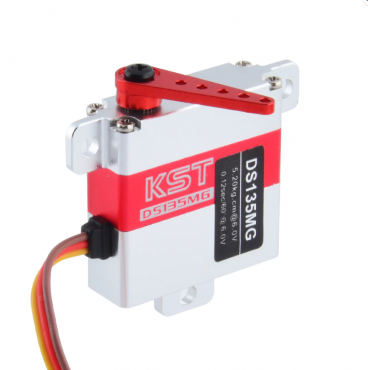

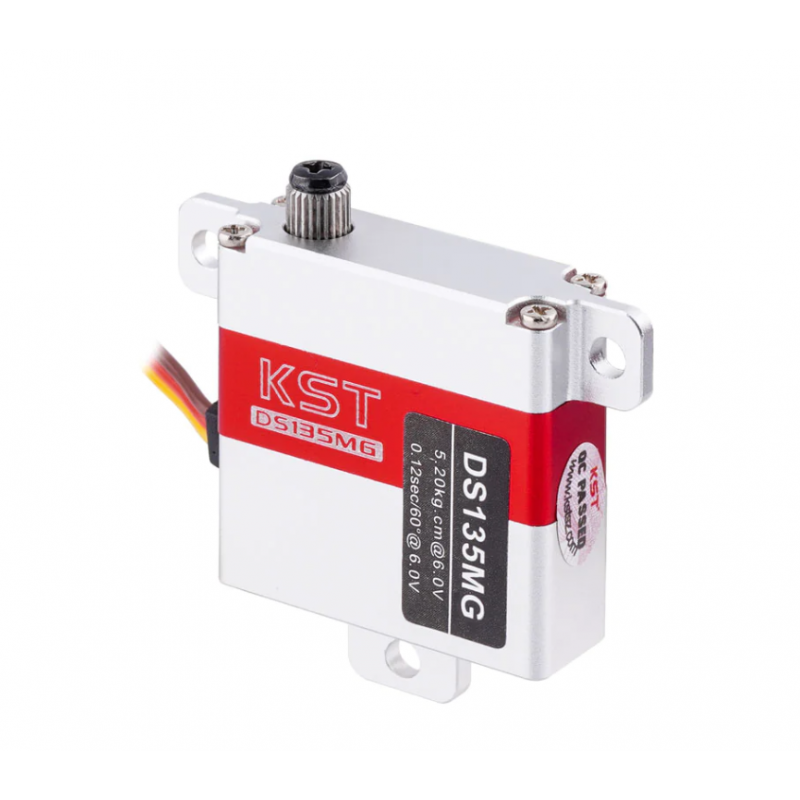

KST DS135MG Digital Metal Gear Servo for Glider Wing
€33.59
The KST DS135MG Wing Servo is an amazingly good metal cased wing servo. It is exactly the same size and has 90% of the performance and build quality of the market leader, for less than half the price. Like the more expensive servo, it has no geartrain slop.
At only 10mm thick this great wing-servo can easily fit in thin glider and jet wings. With a massive 5.2Kgf.cm torque the KST DS135MG is appropriate for F3F, F3B, F3J, F5J, all fast gliders, and jets.
DS135MG Servo
Features
Extreme torque and Excellent speed
CNC aluminium case
Two Ball Bearings
Programmable
Specification
Iteam: DS135MG Digital Metal Servo
Operating Voltage: DC4.8V-6.0V
Rated Voltage: DC4.8V
Size: 30*10*30mm
Torque: 5.2Kgf.cm@6.0V / 4.3Kgf.cm@4.8V
Speed: 0.12sec/60°@6.0V / 0.15sec/60°@4.8V
Default Travel Angle: ±50° = 100° Total
Operating Temperature Range：-10℃……+65℃
Soft Start: Programmable
Programmable: Yes
Case Material: Aluminum Alloy
Motor Type: Coreless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer
Case Dimensions: 30mm*10mm*29.6mm±0.2mm
Weight: 23g±10%
Recommend Servos: DS125MG Servo, DS135MG Servo, DS145MG Servo
