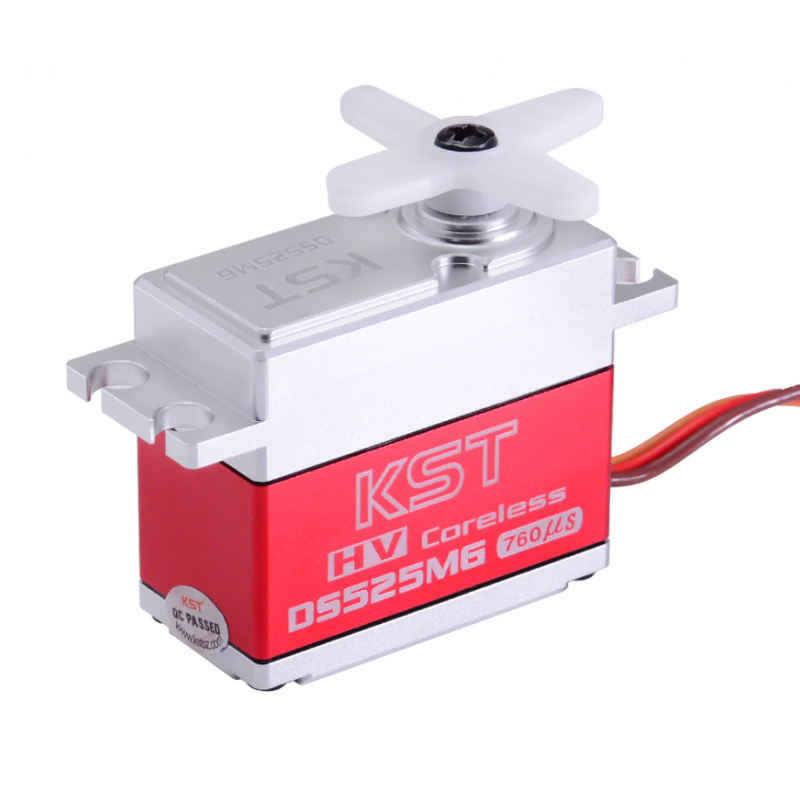

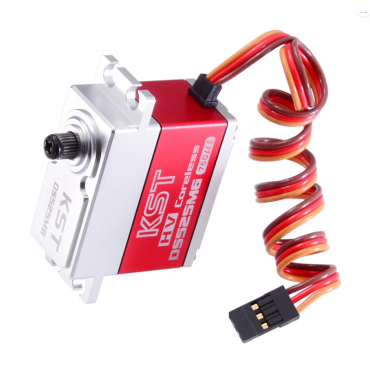

KST DS525MG 8.4V HV Digital Metal Gear Servo for Helicopters

€62.20
Quantity

DS525MG is a high-quality and very fast digital standard servo with a robust aluminum housing. Precise and backlash-free metal gear. Extremely accurate and therefore ideal for helicopter tail rotors in the 550-700 class.

DS525MG 8.4V HV Digital Metal Gear Servo 7.5kg 0.04sec for Helicopters

Features

Hardened Steel Gears

Extreme Torque and Excellent Speed

CNC Aluminium Case

Two Ball Bearings

Specification

Item: DS525MG Metal Gear Servo

Operating Voltage: DC6.0V-8.4V

Size: 40.50*20*37mm

Torque:

7.5Kg.cm @ 8.4V

6.5Kg.cm @ 7.4V

5.5Kg.cm @ 6.0V

Speed:

0.04sec/60° @ 8.4V

0.045sec/60° @ 7.4V

0.05sec/60° @ 6.0V

Weight: 68g

Working Frequency: 760us

Motor: Φ17mm Coreless

Ball Bearing: 2BB
