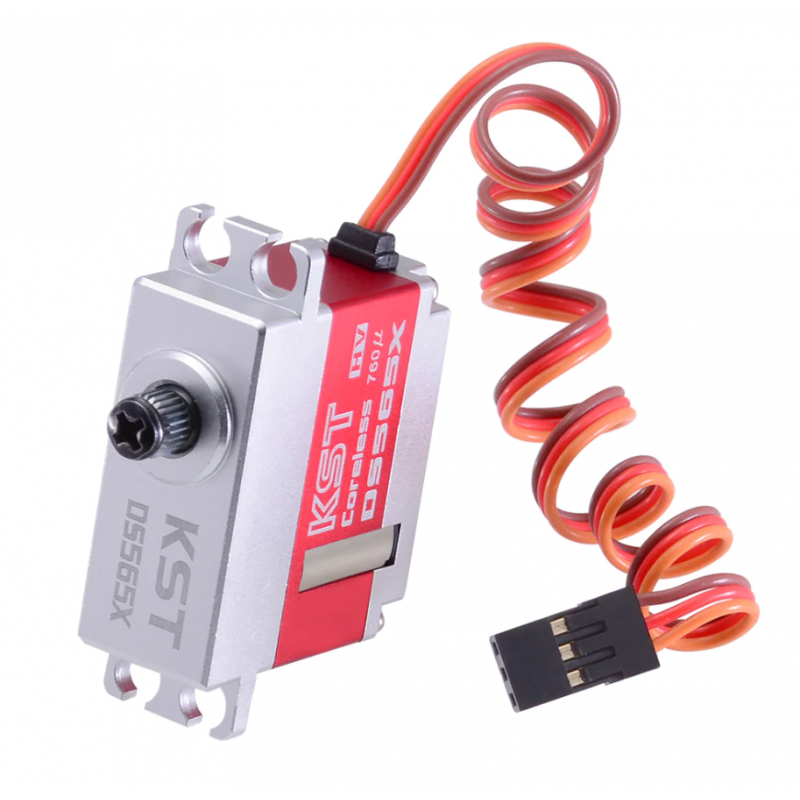

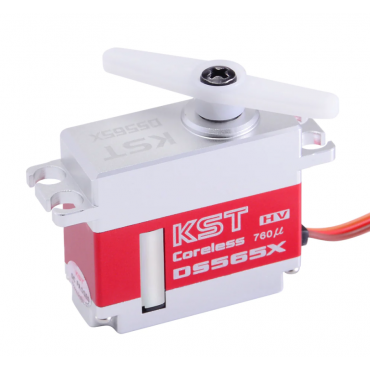

KST DS565X 8.4V HV Digital Metal Gear Servo for Helicopters

€62.20
Quantity

DS565X Mini Size Digital Servo is a great choice for helicopters ranging from 325mm-425mm rotor blade size requiring mini servos on the tail rotor! It's critical to ensure your gyro has the capability to operate 760uS Tail Servos, ensuring that the KST 565X operates correctly.

DS565X 8.4V HV Digital Metal Gear Servo 6kg.cm 0.04sec for Helicopter

Features

Extreme Torque and Excellent Speed

CNC Aluminium Case

Two Ball Bearings

Specification

Item: DS565X Digital Servo

Operating Voltage: DC6.0V-8.4V

Size: 35.50*15*32.70mm

Torque:

4.00Kg.cm @ 6.0V

5.00Kg.cm @ 7.4V

6.00Kg.cm @ 8.4V

Speed:

0.06sec/60° @ 6.0V

0.05sec/60° @ 7.4V

0.04sec/60° @ 8.4V

Weight: 40g

Working Frequency: 760us/560Hz,

Motor: Φ 15mm Coreless

Ball Bearing: 2BB

HP0023.0037
