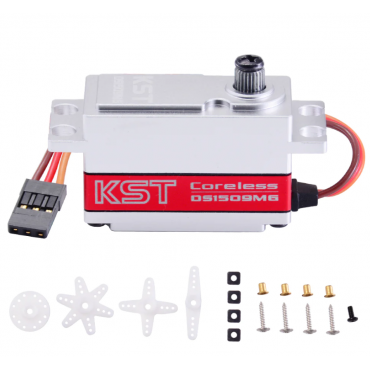

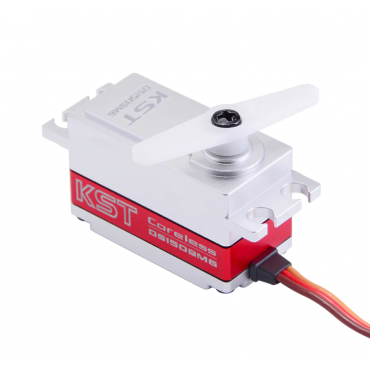

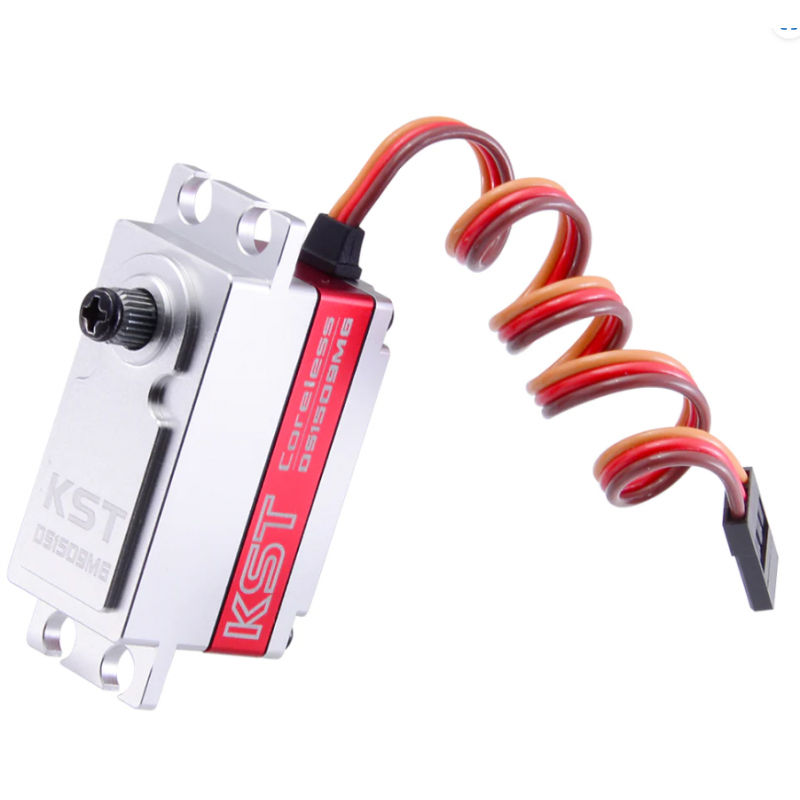

KST DS1509MG Metal Gear Coreless Digital Low Profile Servo for Aircraft & RC Cars
€62.20
DS1509MG High Speed High Torque Low Profile Digital Servo, 0.07s 177oz @7.4V, a great choice of steering servo for RC cars. It offers a wide voltage range of 4.8 - 7.4 Volt and is therefore universally applicable due to the low profile construction.
High positioning speed and the torque of up to 177oz.inch at 7.4 V allow the use of the servo in both aircraft models and the RC cars.
DS1509MG Metal Gear Coreless Digital Servo 12.8kg.cm 0.07sec for Aircraft RC Cars
Features
Extreme torque and Excellent speed
CNC aluminium case
Two Ball Bearings
Low Profile servo
Specification
Item: DS1509MG Coreless Servo
Operating Voltage: DC4.8V-7.4V
Size: 40.50*20*25.4mm
Torque: 12.8kg.cm@7.4V 10.7kg.cm@6.0V 8.5kg.com@4.8V
Speed: 0.07sec/60°@7.4V 0.08sec/60°@6.0V 0.10sec/60°@4.8V
Weight: 55g
Working Frequency: 1520us/333Hz, 900us-2100us
Motor: Coreless
Ball Bearing: 2BB
Accessories: Metal Gear Set, 25T-6B Aluminum Servo Arm
