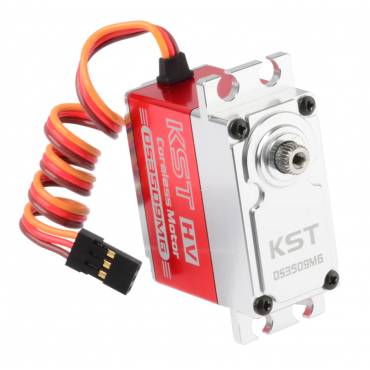

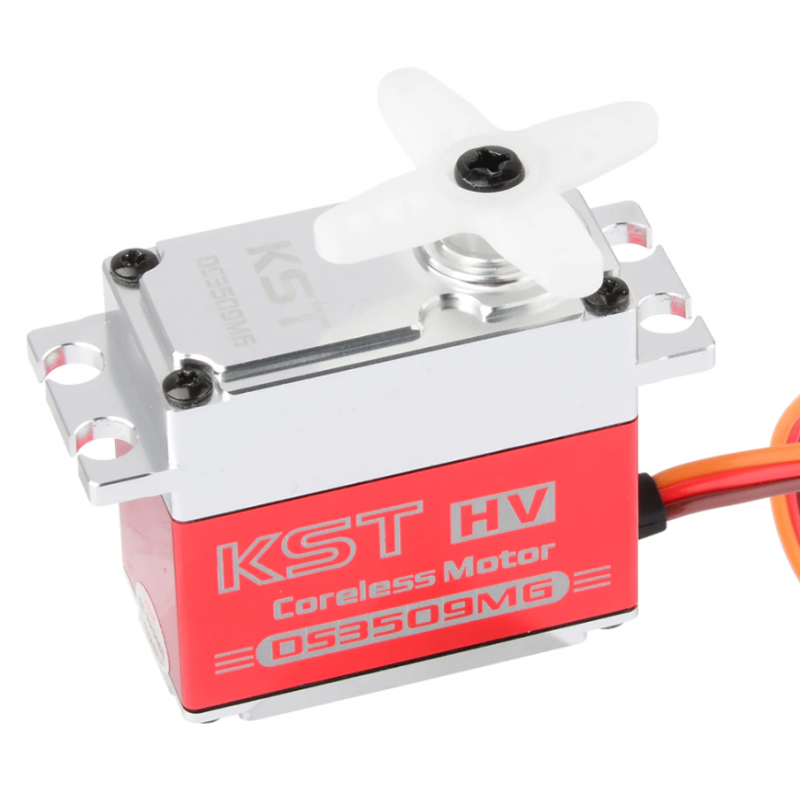

KST DS3509MG Digital HV Metal Gear Servo for RC Airplanes
€80.60
DS3509MG is a high-quality and very fast digital standard servo with a robust aluminum housing. Precise and backlash-free metal gear. Extremely accurate and therefore ideal for helicopters in the 550-700 class, ailerons and elevators for large 3D model airplanes.
DS3509MG Digital HV Metal Gear Servo 35kg.cm 0.12sec for RC Airplanes
Features
Hardened Steel Gears
Extreme Torque and Excellent Speed
CNC Aluminium Case
Two Ball Bearings
Ideal for helicopters in the 550-700 class, ailerons and elevators for large 3D model airplanes.
Specification
Item: DS3509MG Metal Gear Servo
Operating Voltage: DC 6.0V-8.4V
Size: 40.50*21*38mm
Torque:
35Kg.cm @ 8.4V
32Kg.cm @ 7.4V
30Kg.cm @ 6.0V
Speed:
0.12sec/60° @ 8.4V
0.13sec/60° @ 7.4V
0.14sec/60° @ 6.0V
Weight: 78g
Working Frequency: 1520us/333Hz, 900us-2100us
Motor: Φ20mm Coreless
Ball Bearing: 2BB

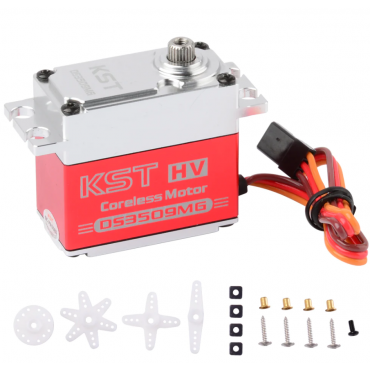

Accessories: 25T-6C Aluminum Servo Horn, 25T Servo Arm & Screw Set
