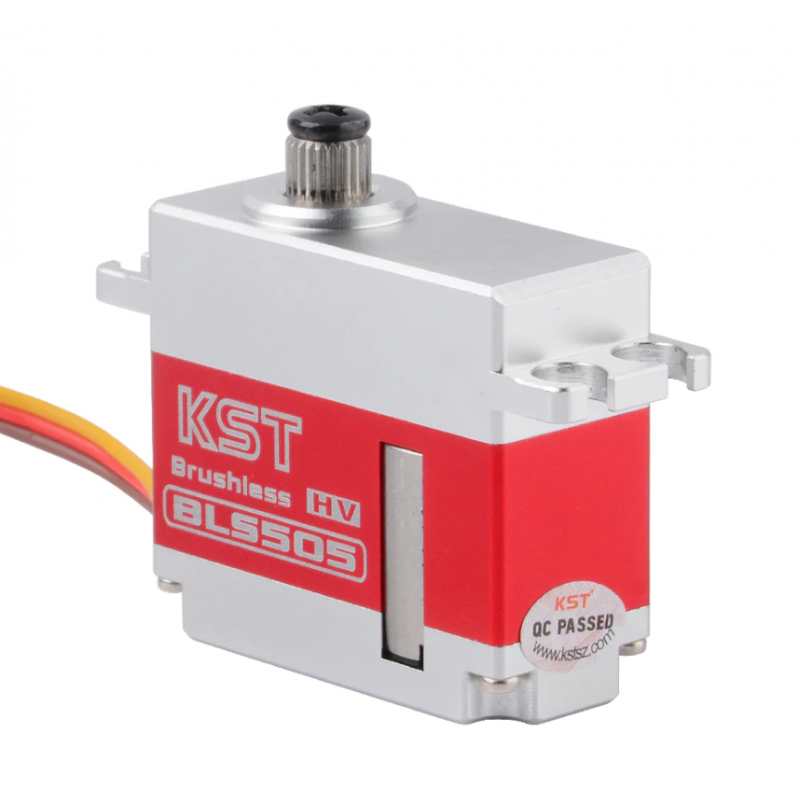

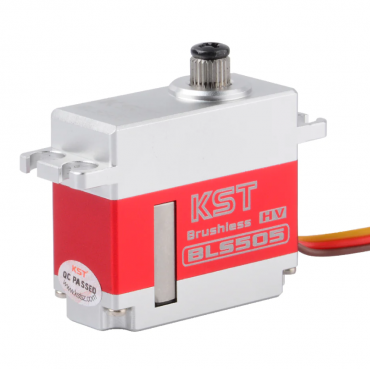

KST BLS505 8.4V HV Brushless Cyclic Servo for RC Helicopter
€67.00
KST BLS505 uses two ball bearings and brushless motor for super durability against heavy use. The all-aluminum CNC solid housing structure enhances heat dissipation. Capable of 8.4V HV operation voltage, and can output 7kg-cm ultra powerful torque and 0.075sec speed when it reach this voltage.
Features
Hardened Steel Gears
Extreme torque and Excellent speed
CNC aluminum case
Brushless DC Motor
For Align T-Rex 500 as cyclic servo
Specification
Item: BLS505 HV Brushless Cyclic Servo
Operating Voltage: DC 6.0V-8.4V
Size: 35.50*15*32.70mm
Torque: 5.00Kg.cm @ 6.0V, 6.20Kg.cm @ 7.4V, 7.0Kg.cm @ 8.4V
Speed: 0.09sec/60° @ 6.0V, 0.08sec/60° @ 7.4V, 0.07sec/60° @ 8.4V
Weight: 40g
Working Frequency: 1520us/333Hz, 900us-2100us
Motor: Φ 15mm brushless
Ball Bearing: 2BB
Related Servos: BLS505X Brushless Digital HV Servo
HP0023.0041
