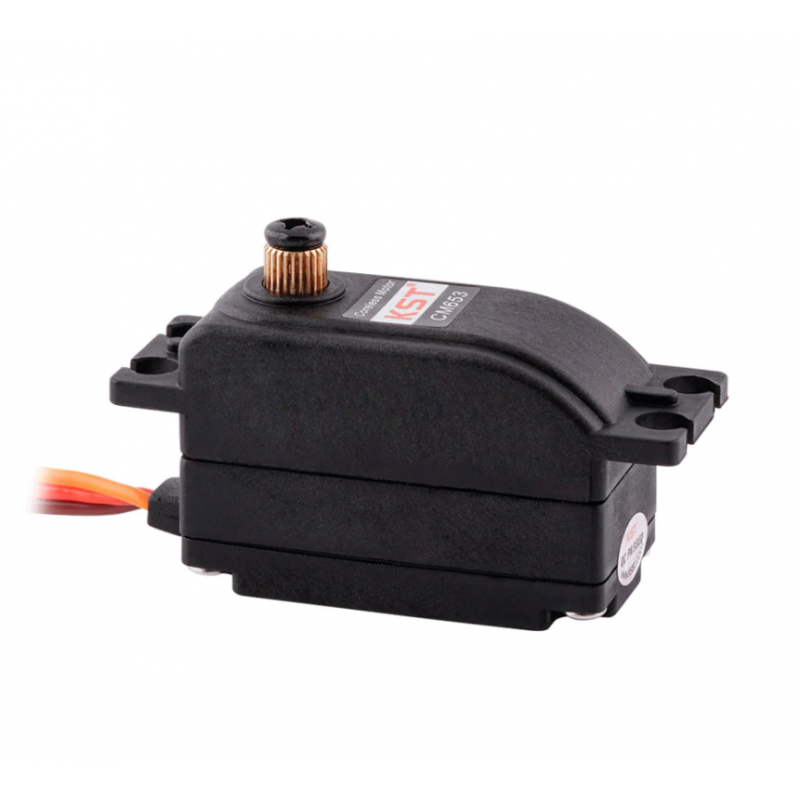

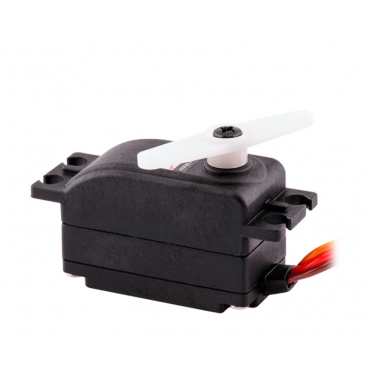

KST CM653 LP Metal Gear Servos IP65 Waterproof for 1/10th Scale Trucks, Rock Crawlers, Drift & Touring Cars
€23.96
CM653 Low Profile servo offers fast response, high efficiency, ultra-high torque, excellent speed and IP65 splash-proof. Perfect for 1/10th scale trucks, rock crawlers, drift & touring cars.
CM653 Servo
Features
Low Profile Servo with fast response and high efficiency
Ultra-high torque & Excellent speed
IP65 splash-proof
Double ball bearings
Coreless DC Motor
Metal Gear
Programing box/USB link compatible
Ideal for 1/10 RC Drifting Car & RC Touring Car
Specification
Item: CM653 Low Profile Servos
Rated Voltag: DC7.4V
Voltage Range: DC4.8V-8.4V
Torque:
10Kgf.cm@4.8V
12Kgf.cm@6.0V
15Kgf.cm@7.4V
18Kgf.cm@8.4V
Speed:
0.12sec/60°@4.8V
0.10sec/60°@6.0V
0.09sec/60°@7.4V
0.08sec/60°@8.4V
Stall Current:
2.60A@4.8V
3.20A@6.0V
3.60A@7.4V
4.05A@8.4V
Working Frequency: 1520μs/333Hz
Default Travel Angle: ±50° =100° Total
Temperature Range: -10℃……+65℃
Soft Start: Programmable
Programmable: Yes
Motor Type: Coreless DC Motor
Gear Set Material: Metal Gear
Position Sensor: Potentiometer
Ball Bearing: 2BB
Waterproof: IP65
Case Dimensions: 40.5*20*27.5±0.2mm
Weight: 43g±10%
