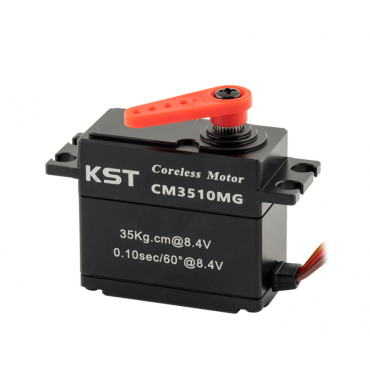

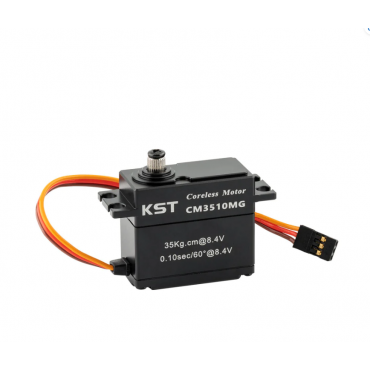

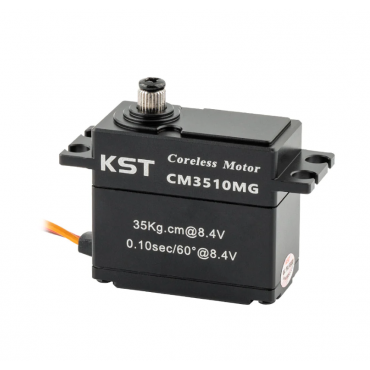

KST CM3510MG Metal Gear Servos IP65 Waterproof for 1/10 Scale RC Rock Crawler and 1/7th 1/8th Scale RC Monster Truck & Buggy
€51.16
CM3510MG coreless servo with fast response and high efficiency is perfect for 1/10 Scale RC Rock Crawlers and 1/7th to 1/8th RC Monster Trucks & Buggies. Featuring an ultra-high 35Kgfcm of torque along with an excellent speed of 0.10sec/60°. The CM3510MG is also IP65 waterproof making it ideal for tough conditions. CM3510MG is one of the most high quality servos on the market today for these applications.
CM3510MG Servo
Feature
Ultra High Torque & Excellent Speed
IP65 Waterproof
Double Ball Bearings
Coreless DC Motor
CNC Aluminium Case
Hardened Steel Gear
Support Soft Start
Programmable
Ideal for 1/10 Scale RC Rock Crawler, 1/7th and 1/8th Scale RC Monster Truck & Buggies
Specification
Item: CM3510MG Servo
Rated Voltage: DC7.4V
Voltage Range: DC4.8V-8.4V
Torque: 20Kgf.cm@4.8V / 25Kgf.cm@6.0V / 30Kgf.cm@7.4V / 35Kgf.cm@8.4V
Speed: 0.20sec/60°@4.8V / 0.15sec/60°@6.0V / 0.13sec/60°@7.4V / 0.10sec/60°@8.4V
Stalling Current: 2.10A@4.8V / 2.90A@6.0V / 3.30A@7.4V / 3.65A@8.4V
Working Frequency: 1520μs/333Hz
Default Travel Angle: ±50° =100° Total
Temperature Range: -10℃……+65℃
Soft Start: Yes
Programmable: Yes
Case Material: Aluminum Alloy
Motor Type: Coreless DC Motor
Gear Set Material: Metal gear
Position Sensor: Potentiometer
Ball Bearing: 2BB
Waterproof: IP65
Case Dimensions: 40.5mm*20mm*38mm±0.2mm
Weight: 70g±10%
