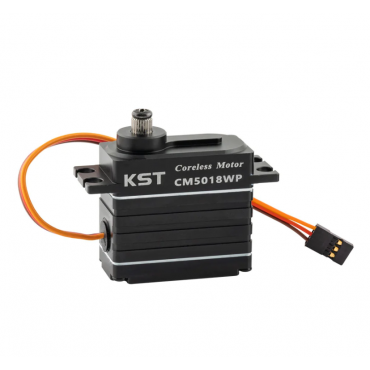

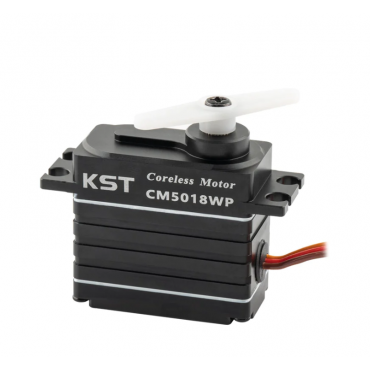

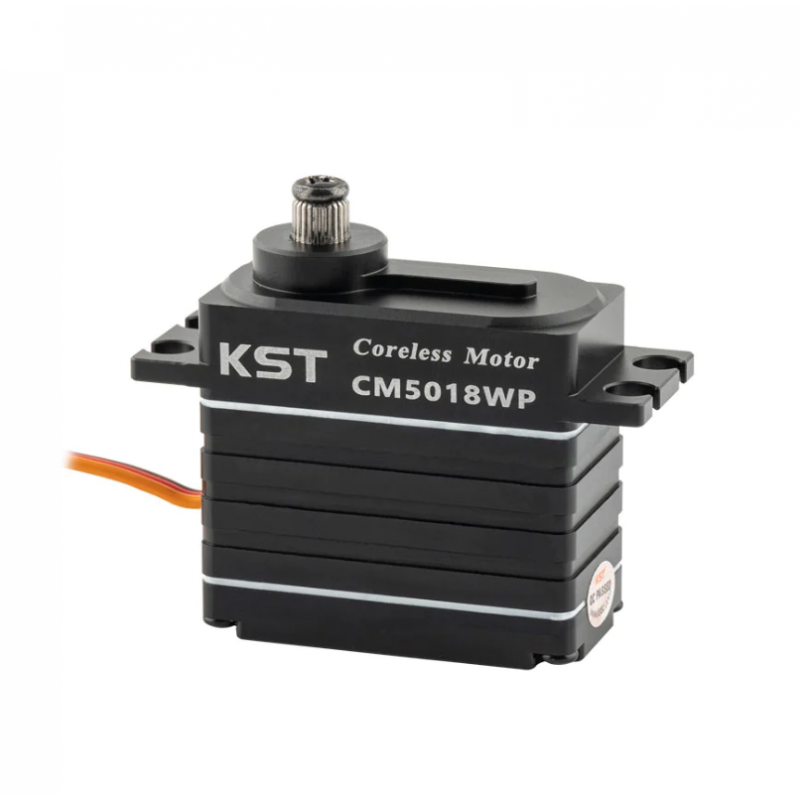

KST CM5018WP Coreless DC Motor Metal Gear Servo IP67 Waterproof for 1/10th & 1/8th Scale RC Rock Crawlers
€57.56
CM5018WP coreless servo with fast response and high efficiency is perfect for 1/10th & 1/8th Scale RC rock crawlers. Featuring a wonderful 50Kgf.cm of torque along with a fast speed of 0.18sec/60°. The IP67 waterproof making it ideal for mud, swamp and other tough conditions. CM5018WP is also programmable, you can adjust the parameters as you demand. It is one of the most powerful servos of its kind.
CM5018WP Servo
Features
Ultra High Torque & Excellent Speed
IP67 Waterproof
Programmable
Dual Ball Bearings
Coreless DC Motor
Ideal for 1/10th & 1/8th Scale RC Rock Crawlers
Specification
Item: CM5018WP Servo
Rated Voltage: DC7.4V
Voltage Range: DC4.8V-8.4V
Torque: 35Kgf.cm@4.8V / 40Kgf.cm@6.0V / 45Kgf.cm@7.4V / 50Kgf.cm@8.4V
Speed: 0.25sec/60°@4.8V / 0.23sec/60°@6.0V / 0.20sec/60°@7.4V / 0.18sec/60°@8.4V
Start Current: 4.68A@4.8V / 5.70A@6.0V / 7.25A@7.4V / 8.15A@8.4V
Working Frequency: 1520μs/333Hz
Default Travel Angle: ±50° =100° Total
Temperature Range: -10℃.......+65℃
Soft Start: Programmable
Programmable: Yes
Case Material: Aluminium Alloy
Motor Type: Coreless DC Motor
Gear Set Material: Hardened Steel Gear
Position Sensor: Potentiometer
Ball Bearing: 2BB
Waterproof: IP67
Case Dimensions: 40.5mm*20.5mm*41.3mm ±0.2mm
Weight: 80g±10%
