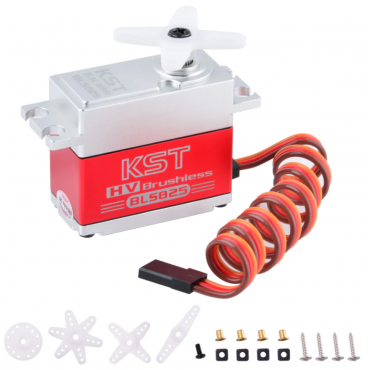

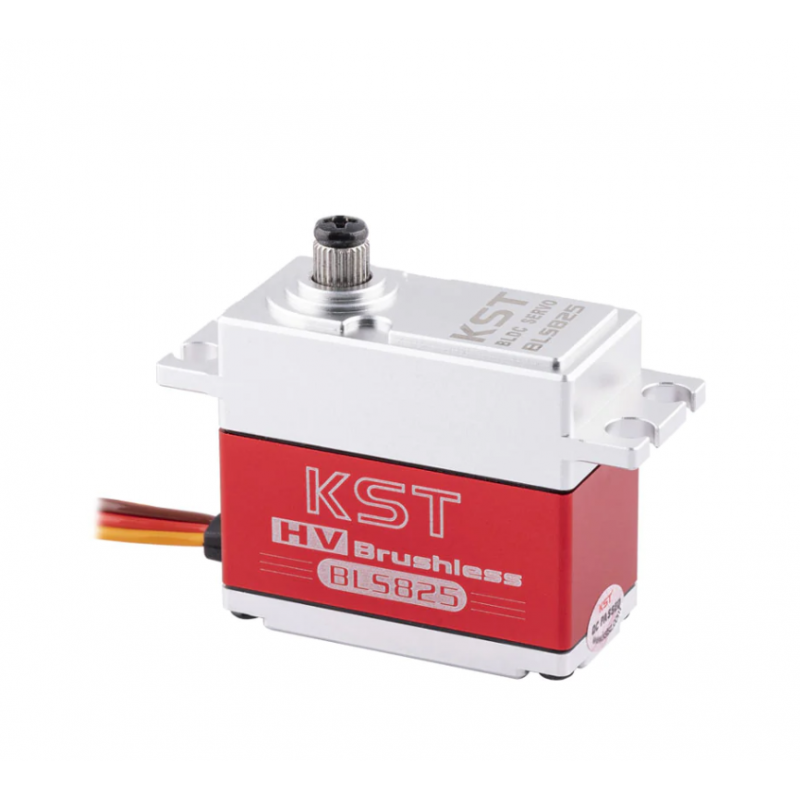

KST BLS825 V8.0 Brushless HV Metal Case Servo for 550-700 Class Helicopters
€76.76
The KST BLS825 servo is equipped with a powerful brushless motor and was developed especially for surface models. Due to the high resetting accuracy, in conjunction with the very robust and backlash-free full metal gearbox, the KST BLS825 is ideal for scale and aerobatic models.
We also provide the BLS815 Brushless HV Servos.
BLS825 Brushless HV Metal Case Servo 35kg.cm 0.11sec/60° for 550-700-class helicopters
Features
Hardened Steel Gears
Extreme Torque and Excellent Speed
CNC Aluminium Case
Brushless DC Motor
Two Ball Bearings
Ideal for 550-700 Class Helicopters
Specification
Item: BLS825 Brushless Servo
Operation Voltage(rated): 7.4V
Operating Voltage: DC6.0V-8.4V
Size: 40.50*20*37mm
Torque: 35Kg.cm@8.4V, 30Kg.cm@7.4V, 25Kg.cm@6.0V
Speed: 0.11sec/60°@8.4V, 0.13sec/60°@7.4V, 0.15sec/60°@6.0V
Travel Angle: ±50°=100° Total
Weight: 70g
Working Frequence: 1520us/333Hz
Motor: Brushless
Ball Bearing: 2BB
HP0023.0045
