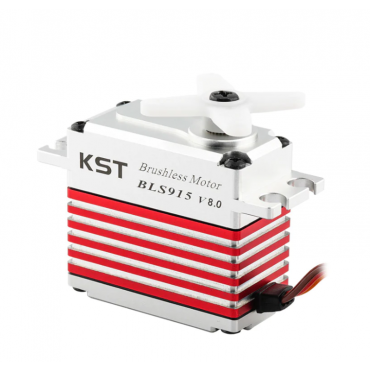

KST BLS915 Brushless HV Metal Servo for 600-700 Class Helicopters and 3D Aerobatics

€90.36
Quantity

The KST BLS915 V2 is the successor to the KST BLS915 (V1). Now upgraded to V8.0 with programming box/USB link compatible. The KST BLS915 V8 is a top class swashplate servo for 3D aerobatics. It is absolutely robust thanks to the aluminum housing and the improved steel gearbox. And it offers the following advantages over the BLS815.

Due to the stronger brushless motor and more powerful electronics in conjunction with the hardened steel gearbox, the BLS915 V8 is a class above the BLS815. The new housing with cooling fins extends the temperature range of the servo to 65 ° C. The high positioning speed in conjunction with the offered performance, the KST BLS915 V8 HV is very well suited for advanced 3D helicopter pilots. Ideal for helicopters of the 600 to 700 class.

BLS915 Brushless HV Metal Servo 25kg.cm 0.07sec/60°

Features

Hardened Steel Gears

Extreme Torque and Excellent Speed

Programmable

CNC Aluminium Case

Brushless DC Motor

Ideal for 600 to 700 Class Helicopters

Specification

Item: BLS915 V8.0 Brushless Servo

Operation Voltage(rated): DC7.4V

Operation Voltage Range: DC6V-8.4V

Torque: 18Kgf.cm@6.0V,  22Kgf.cm@7.4V,  25Kgf.cm@8.4V

Speed: 0.09sec/60°@6.0V,  0.08sec/60°@7.4V,  0.07sec/60°@8.4V

Working Frequency: 1520us/333Hz (Default), 760us/560Hz (Programming Tool Required)

Default Travel Angle: ±50°=100°when1000us-2000us

Temperature Range -10℃……+65℃

Soft Start: Programable

Programmable: Yes

Case Material: Aluminum Alloy

Motor Type: Brushless DC Motor

Gear Set Material: Hardened Steel

Position Sensor: Potentiometer

Case Dimensions: 40.5mm*20mm*38mm±0.2mm

Weight: 70g±10%

HP0023.0134-V8
