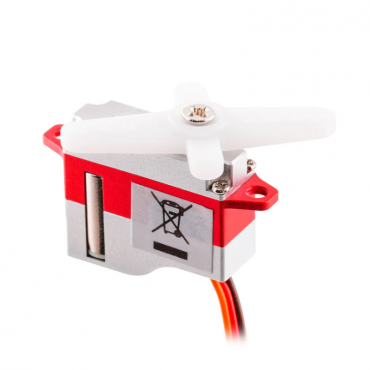

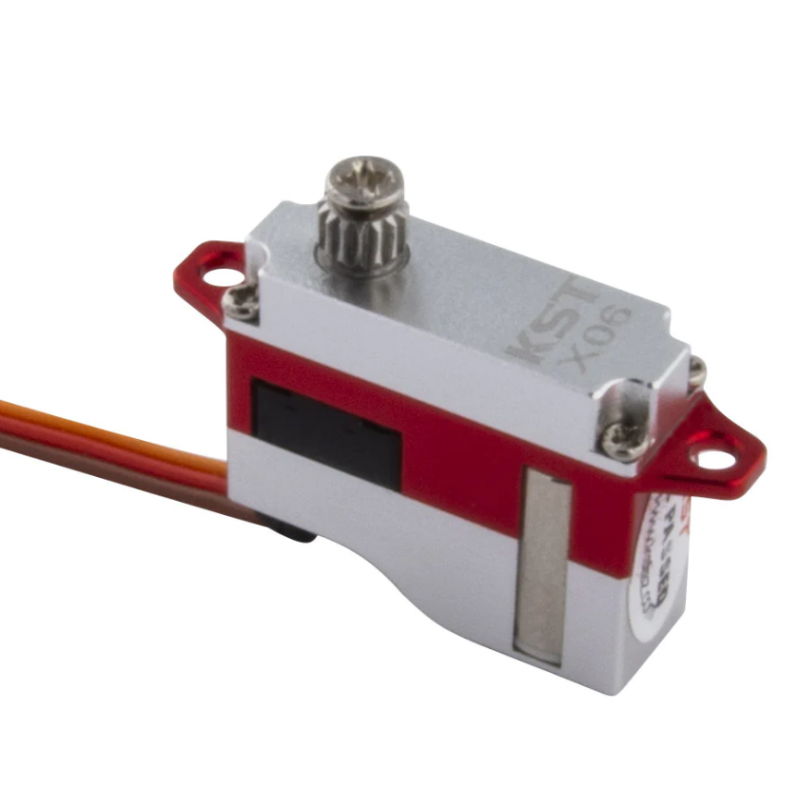

KST X06 V6.0 HV Digital Metal Gear Micro Servo for RC Gliders

€38.36
Quantity

The X06 V6.0 servo is the option for regular mounting tabs - most suitable for fuselage or other installations where the servo is upright.

Performance in a tiny package. The V6.0 is now fully programmable with the KST Tool #1 and sports a new custom chip similar to the A08 V6 servos for higher accuracy.

The X06 V6.0 servo has been years in the making, leading the market in ultra-small high performance servos. At 7mm thick and a tiny footprint, the X06 V6.0 servo is the perfect fit for 1-meter DLGs and other small gliders.

Complete metal construction sets the X06 v6.0 servo apart from its competitors with plastic mechanicals that flex under pressure. The high torque and precision of the X06 allow you to set up your model to its highest performance potential.

X06/X06H/X06N Servo

Features

Compact and Lightweight Design

Excellent Torque and Speed

Designed for High Performance RC Gliders

Excellent Heat Dissipation

Ultra Slim 7mm Body

Specification

Item: X06 Micro Servo

Rated Voltage: DC3.8V-8.4V

Voltage Range: DC6.0V

Rated Torque: 4N.cm @ 6.0V

Rated Speed: 0.20sec/60° @ 6.0V

Rated Current 0.22A @ 6.0V

Torque: 0.8Kgf.cm@3.8V, 1.5Kgf.cm@ 6.0V, 1.8Kgf.cm@8.4V

Speed: 0.12sec/60°@3.8V, 0.08sec/60°@6.0V, 0.07sec/60°@8.4V

Stalling Current: 0.58A@ 6.0V

Default Travel Angle: ±60° = 120° total travel

Operating Temperature Range: -20℃……+65℃

Case Dimensions: 20mm*7mm*16.6mm±0.1mm

Weight: 6g±10%

Motor Type: Coreless DC Motor

Case Material: Aluminum Alloy

Gear Set Material: Steel Gear

Position Sensor: Potentiometer

Ball Bearing: 1BB

HP0023.0144-V6
