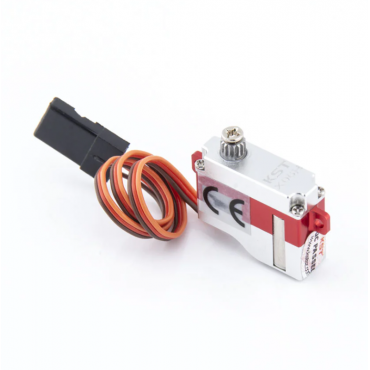

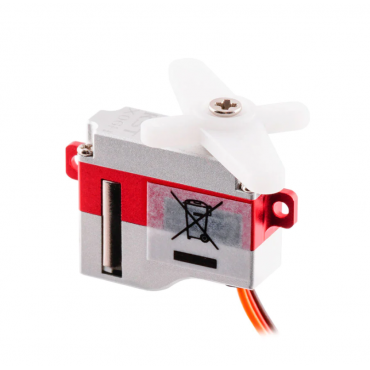

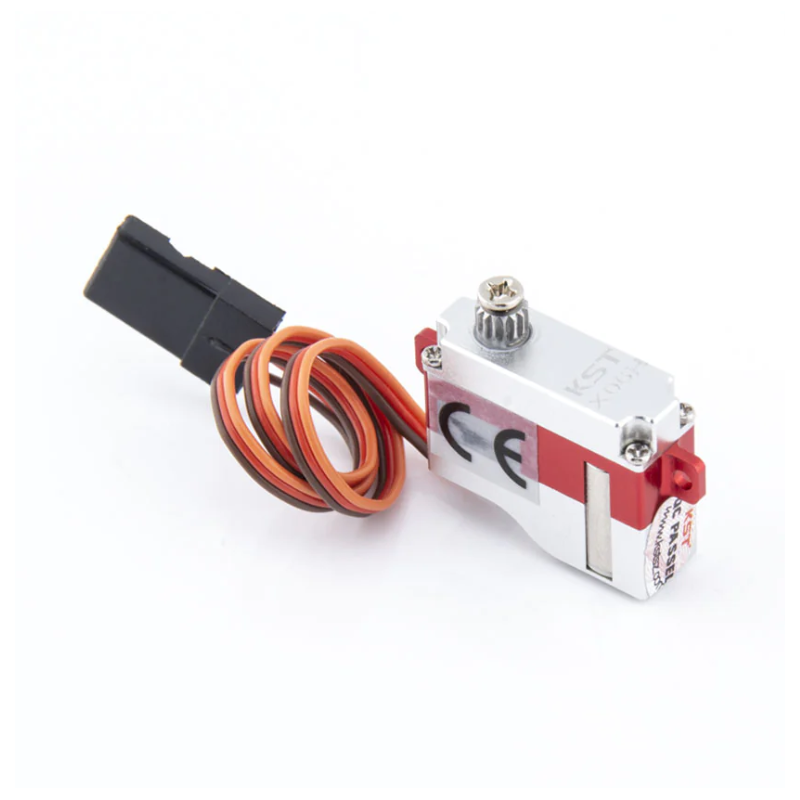

KST X06H V6.0 HV Digital Metal Gear Micro Servo for RC Gliders

€38.36
Quantity

X06H is with the horizontal mount tabs. Perfect for installations where the servos are mounted laying flat, such as in wings and certain fuselages.

KST delivers once again with the X06 series competition servos for glider pilots and soaring enthusiasts who demand the best! The all new X06 are super compact and ideal for F3K and F5K gliders. Featuring a slim 7mm wide casing crafted from 6061 Alloy and sporting the famous KST red midsection not only do these servos look fantastic but they also offer the competition winning performance you would expect from KST.

X06/X06H/X06N Servo

Features

Compact and Lightweight Design

Excellent Torque and Speed

Designed for High Performance RC Gliders

Excellent Heat Dissipation

Ultra-slim 7mm Body

Specification

Item: X06H Micro Servo

Voltage Range: DC6.0V

Rated Voltage: DC3.8V-8.4V

Torque: 0.8Kgf.cm@3.8V, 1.5Kgf.cm@6.0V, 1.8Kgf.cm@8.4V

Rated Torque: 4N.cm@6.0V

Stalling Current 0.58A@6.0V

Rated Current 0.22A@6.0V

Speed: 0.12sec/60°@3.8V, 0.08sec/60°@6.0V, 0.07sec/60°@8.4V

Rated Speed: 0.20sec/60°@6.0V

Default Travel Angle: ±60° = 120° Total

Operating Temperature Range: -10℃……+65℃

Soft Start: Programmable

Programmable: Yes

Case Material: Aluminum Alloy

Motor: Coreless DC Motor

Gear Set Material: Hardened Steel

Case Dimensions: 20mm*7mm*16.6mm±0.2mm

Weight: 6g±10%

Ball Bearing: 1BB

HP0023.0144-H-V6
