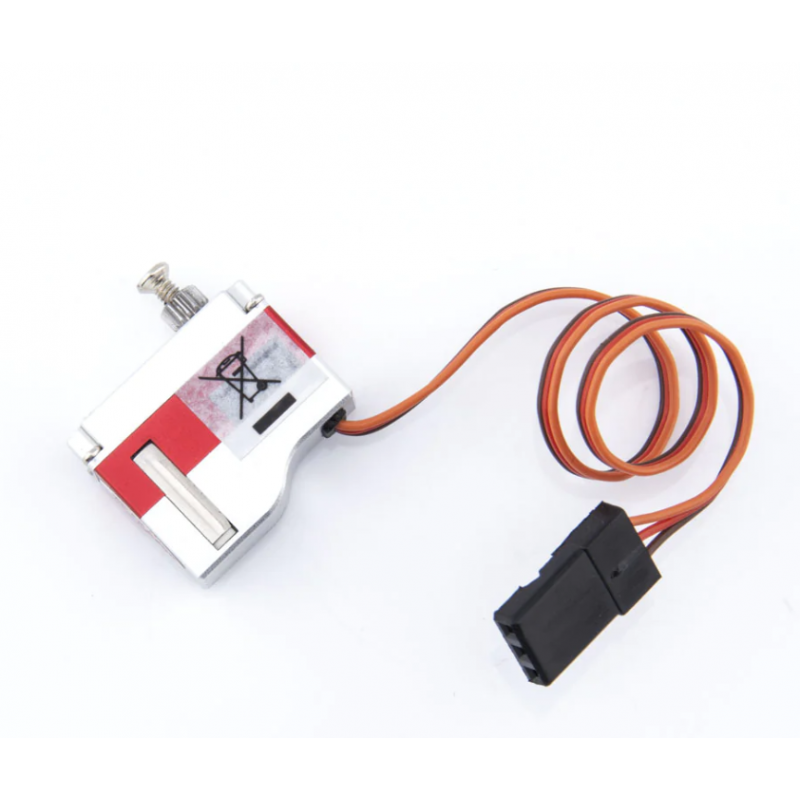

KST X06N V6.0 HV Micro Digital Metal Gear Micro Servo for RC Gliders
€38.36
X06N V6.0 servo is without mounting tabs. Perfect for installations where the servos are glued to the model.
KST delivers once again with the X06 series competition servos for glider pilots and soaring enthusiasts who demand the best! The all new X06 are super compact and ideal for F3K and F5K gliders. Featuring a slim 7mm wide casing crafted from 6061 Alloy and sporting the famous KST red midsection not only do these servos look fantastic but they also offer the competition winning performance you would expect from KST.
X06/X06H/X06N Servo
Features
Compact and Lightweight Design
Excellent Torque and Speed
Designed for High Performance RC Gliders
Excellent Heat Dissipation
Ultra-slim 7mm Body
Specification
Item: X06N HV Micro Servo
Rated Voltage: DC3.8V-8.4V
Voltage Range: DC6.0V
Stall Torque: 0.8Kgf.cm@3.8V, 1.5Kgf.cm@6.0V, 1.8Kgf.cm@8.4V
Rated Torque: 4N.cm @ 6.0V
Stalling Current: 0.58A @ 6.0V
Rated Current: 0.22A @ 6.0V
No-load Speed: 0.12sec/60°@3.8V, 0.08sec/60°@6.0V, 0.07sec/60°@8.4V
Rated Speed: 0.20sec/60° @ 6.0V

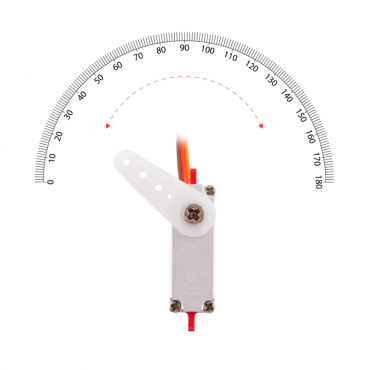

Default Travel Angle: ±60° = 120° total travel
Operating Temperature Range: -20℃……+65℃
Case Dimensions: 20mm*7mm*16.6mm±0.2mm
Weight: 6g±10%
Motor: Coreless motor
Ball Bearing: 1BB
HP0023.0144-H-V6
