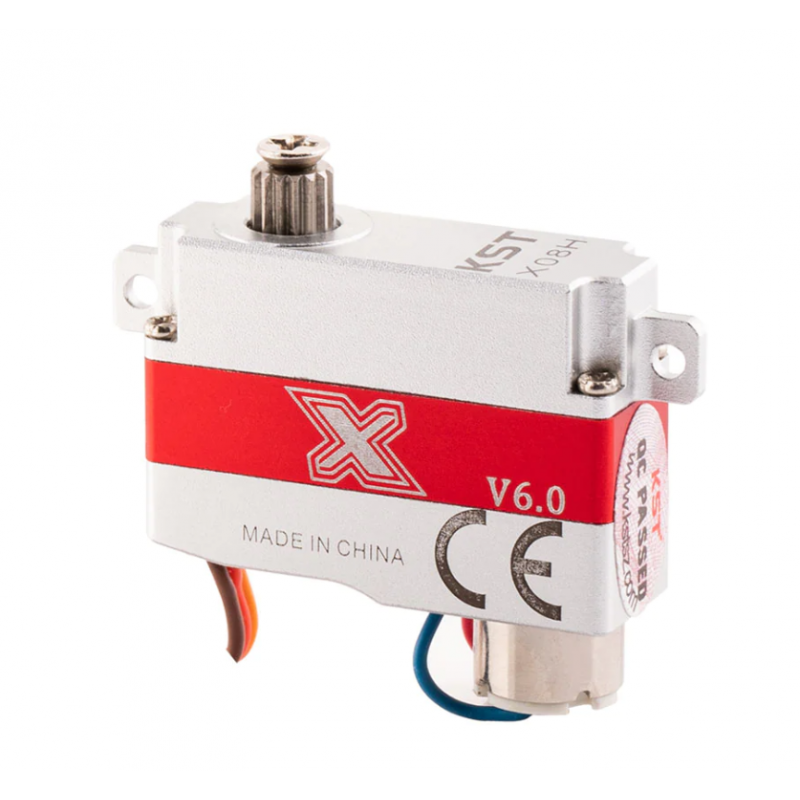

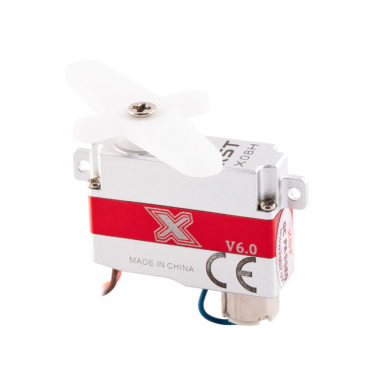

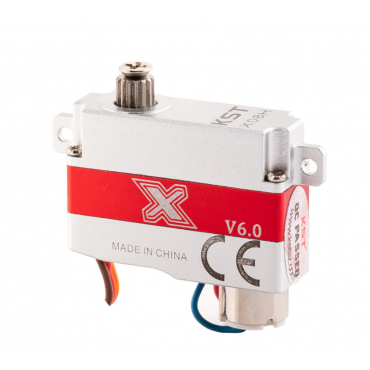

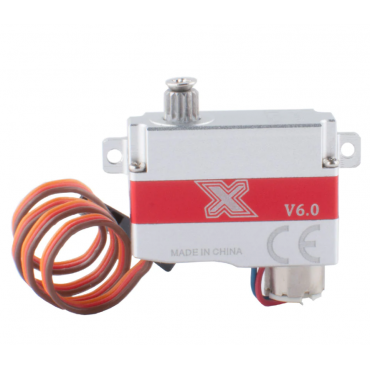

KST X08H Metal Gear Digital Micro Servo for RC Gliders

€40.76
Quantity

KST's new tiny alloy servo, the X08H is just 8mm wide and weighs just 8 grams, but it packs a real punch!

The X08H servo was based on their very popular 245 series, but they pushed the envelope even further. You get a tiny 8mm wide servo that can operate on a wide voltage range and produce up to 2.8kg of torque! That is very impressive, especially considering they weigh less than 9 grams. As we all know, it does no good if the gears are not accurate or tough, well, these are very accurate and very robust. The servo is now programmable with the KST Tool Card #1/ KST Tool Card #5 (sold separately) to adjust the endpoints, center, and direction for the perfect installations. Ideal for DLG use, but also very capable in larger planes.

X08/X08H/X08N Servo

Features

Compact and lightweight design

Excellent torque and speed

Designed for high-performance RC Gliders

Excellent heat dissipation

Programmable

Support soft start

Specification

Item: X08H V6.0 Micro Servo

Rated Voltage: DC7.4V

Voltage Range: DC3.8V-8.4V

Torque: 1.4kg.cm@3.8V, 2.2kg.cm@6.0V, 2.8kg.cm@8.4V

Speed: 0.18sec/60°@3.8V, 0.15sec/60°@6.0V, 0.09sec/60°@8.4V

Working Frequency: 1520μs/333Hz

Default Travel Angle: ±60° = 120° Total

Temperature Range: -10℃……+65℃

Soft Start: Yes

Programmable: Yes

Case Material: Aluminum Alloy

Motor Type: Coreless DC Motor

Gear Set Material: Hardened Steel

Position Sensor: Potentiometer

Case Dimensions: 23.5*8*16.8mm±0.2mm

Weight: 8g±10%

HP0023.0002-V6
