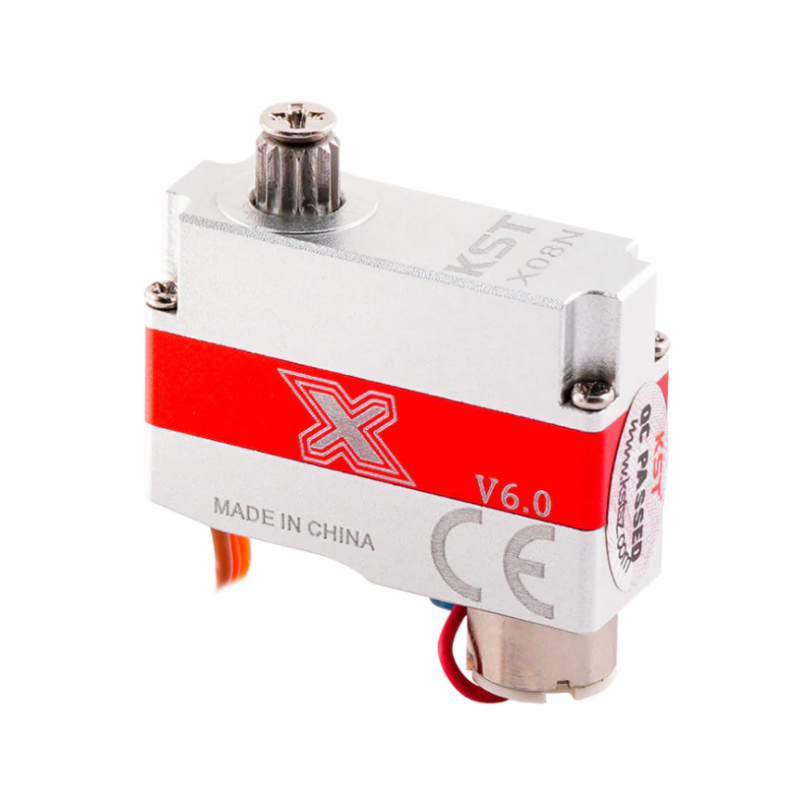

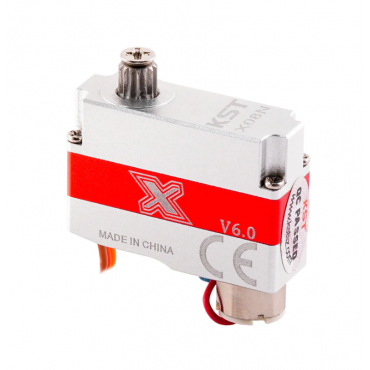

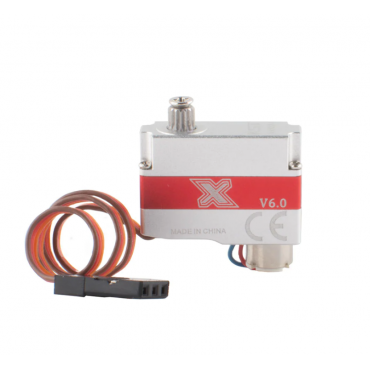

KST X08N Metal Gear Digital Micro Servo for RC Gliders

€40.76
Quantity

The KST X08 series servos have been the defact DLG servo for the past several years, delivering robust and precise performance at a very attractive price. V6 takes it another step forward by not only further improving the gearset to minimize potential slop, but the servos are now programmable with the  KST Tool Card #1/ KST Tool Card #5 (sold separately) to adjust the endpoints, center, and direction for the perfect installations.

KST's continual strive for performance has resulted in the KST X08, with 1us resolution and deadband, the X08 series servos are the most precise servos made by the company. At an incredible 8 mm thickness and very small overall dimensions, this servo will fit in any tight space you want.

To meet the demands of DLG pilots, the KST X08 series servos are designed from the ground up to be 1s and 2s LiPo compatible, making it possible for the pilot to choose any number of battery configurations to suit personal preference.

X08/X08H/X08N Servo

Features

Compact and lightweight design

Excellent torque and speed

Designed for high-performance RC Gliders

Excellent heat dissipation

Programmable

Support soft start

Specification

Item: X08N V6.0 Micro Servo

Rated Voltage: DC7.4V

Voltage Range: DC3.8V-8.4V

Torque: 1.4kg.cm@3.8V, 2.2kg.cm@6.0V, 2.8kg.cm@8.4V

Speed: 0.18sec/60°@3.8V, 0.15sec/60°@6.0V, 0.09sec/60°@8.4V

Working Frequency: 1520μs/333Hz

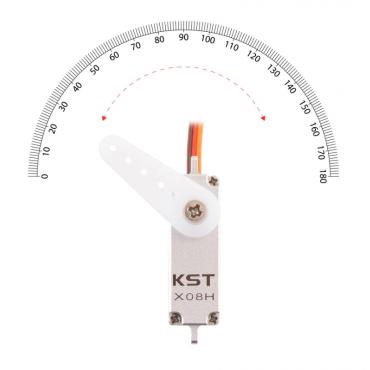

Default Travel Angle: ±60° = 120° Total

Temperature Range: -10℃……+65℃

Soft Start: Yes

Programmable: Yes

Case Material: Aluminum Alloy

Motor Type: Coreless DC Motor

Gear Set Material: Hardened Steel

Position Sensor: Potentiometer

Case Dimensions: 23.5*8*16.8mm±0.2mm

Weight: 8g±10%

HP0023.0003-V6
