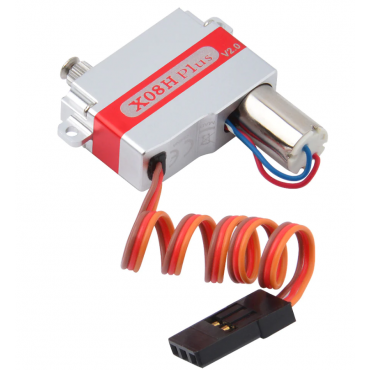

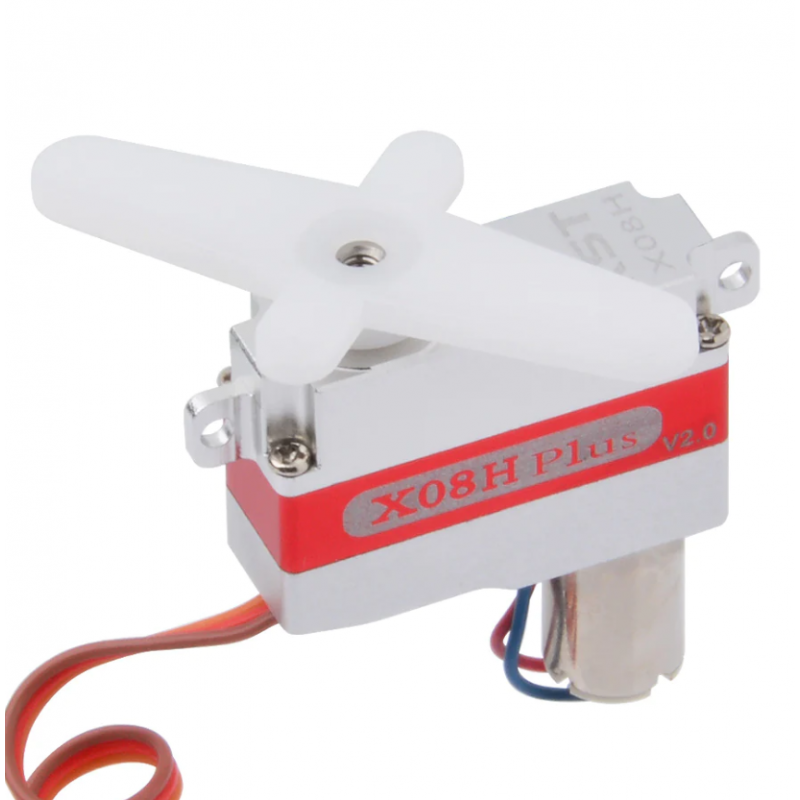

KST X08H Plus V6.0 Horizontal Lug Micro Servo for RC Gliders

€38.36
Quantity

The X08H Plus V6.0 is a version of the KST X08 Plus servo with horizontal mounting lugs (also called mounting tabs), making it suitable for use in wings and other flying surfaces. The KST X08H Plus V6.0 is a very light (9.5 g) low/medium/high voltage metal cased servo. It is based on the well-regarded KST X08H V6 servo but with a larger motor fitted. KST X08H Plus V6.0 takes it another step forward by not only further improving the gearset to minimize potential slop, but the servos are now programmable with the KST Tool Card #1/ KST Tool Card #5 (sold separately) to adjust the endpoints, center, and direction for the perfect installations.

It is especially good for ailerons on F5J gliders, electric racers, and all models with thin flying surfaces. Despite being only 8 mm thick the powerful coreless DC motor and gearing provide good torque and high speed. The X08H Plus can be operated from a voltage as low as 3.8V (1S LiPo) or as high as 8.4V (2S LiPo). KST servos have excellent geartrain machining tolerances, and this servo is completely slop-free and equal to products costing twice as much. Despite not having an -MG moniker this servo has metal gears and is very tough.

The KST X08H Plus's high torque, good speed, and 8mm thinness make it suitable for many high-performance gliders, pylon racers, and EDF applications. With up to 5.3Kgf..cm torque the KST X08 is appropriate for F5J, F5D, F3J and many types of high-performance models.

The extreme reliability and performance of these servos also make them very suitable for use in film and motion picture industry special effect departments. They are also used in robotics, RC models, and other highly demanding applications.

X08H Plus Horizontal Lug Servo 5.3Kg.cm 0.09sec 9.5g 8mm for RC Gliders

Features

Compact and light weight design

Excellent torque and speed

Designed for high performance RC Gliders

Excellent heat dissipation

Specification

Item: X08H Plus V6.0 Micro Servo

Rated Voltage: DC7.4V

Voltage Range: DC3.8V-8.4V

Torque: 2.4Kgf.cm@3.8V, 3.8Kgf.cm@6.0V, 4.84Kgf.cm@8.4V, 5.3Kgf.cm@8.4V

Speed: 0.18sec/60°@3.8V, 0.15sec/60°@6.0V, 0.12sec/60°@7.4V, 0.09sec/60°@8.4V

Working Frequency: 1520μs/333Hz

Default Travel Angle: ±60° = 120° Total

Temperature Range: -10℃……+65℃

Soft Start: Programmable

Programmable: Yes

Case Material: Aluminum Alloy

Motor Type: Coreless DC Motor

Gear Set Material: Hardened Steel

Position Sensor: Potentiometer

Case Dimensions: 23.5*8*16.8mm±0.2mm

Weight: 9g±10%

HP0023.0101
