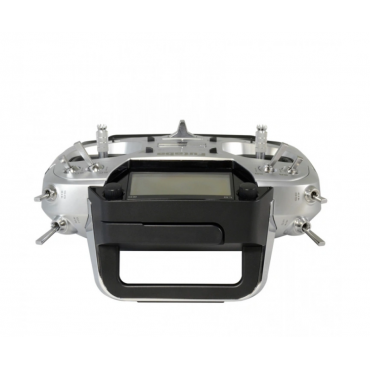

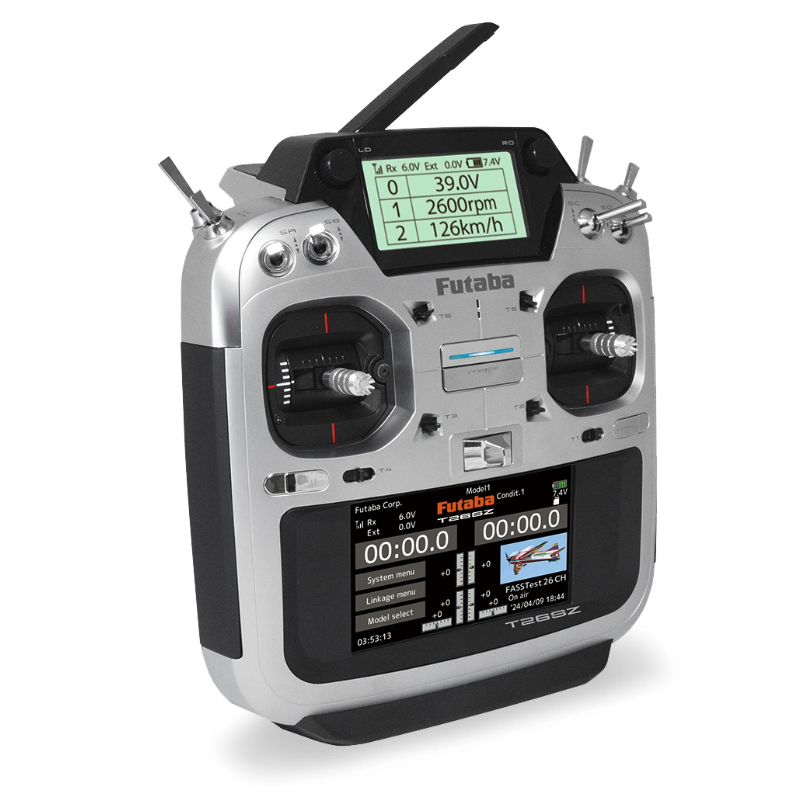

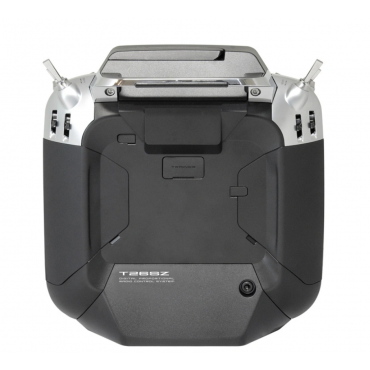

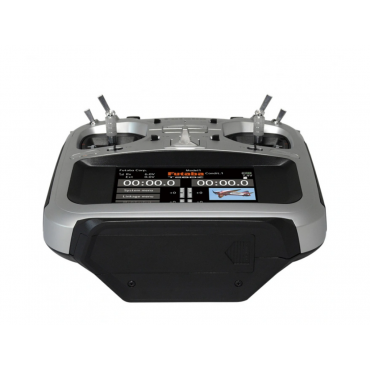

Futaba T26SZ Radio FASSTest26, R7214SB, 2S LiPo
€903.96
The long-awaited successor to the best-selling model “T18SZ”, the new T26SZ is now official!
The new T26SZ is positioned in between the highly desirable high-end T32MZ-WC series that is loved by many competitors and the mid-range T16IZ-Super. For pilots who fly anything and everything, demand unquestioned reliability and seek a future-proof radio that offers the highest level of programming sophistication, Futaba’s T26SZ will be impossible to ignore. With its user-friendly interface, twin screens, silky-smooth hall effect non-contact gimbals, near like-for-like T32MZ feature set, elegant styling and latest FASSTest 26ch protocol, the T26SZ is highly likely to tick every box on your extensive wish list. It is a masterpiece that is comparable to the high-end class, and can be said to be the result of Futaba's many years of accumulated know-how and solid results.
S.BUS2 SYSTEM
Multiple servos, gyros and telemetry sensors can be easily installed with a minimum of cables.
MAIN LCD COLOR DISPLAY
HVGA 4.3" full color backlit LCD transflective (indoor / outdoor visible) touch screen.
SECONDARY LCD DISPLAY
A high quality reflective LCD for easy recognition of telemetry information.
SD CARD PORT
Update software, store model data and upload picture files using the microSD port.
HIGH CAPACITY LI-PO
2100mAh offers a comfortable operating duration and real peace of mind.
INTUITIVE PROGRAMMING
Model-specific programming and editing has never been easier.
MULTIPROP CHANNEL EXPANSION
Using the MPDX-1 multiprop decoder (sold separately) one channel can be divided into eight channels. Two MPDX-1s can be used.
FEELS GOOD
Magnetic detection non-contact potentiometers offer fine, ultra-precise, long-lasting operation. A throttle stick external adjustment screw allows ratchet or self-neutralizing spring adjustment.
SWITCH REPLACEMENT
Change four of the toggles on the right and left shoulder with your chosen two-position, three-position or momentary switch.
Features:
The T26SZ transmitter is changable to either Mode-1 or Mode-2 in the software. See the manual for more info.
FASSTest26, FASSTest18, FASSTest12, S-FHSS & T-FHSS protocols
26 channels (24+2)
Full color 4.3 inch touch screen
3.0" LCD sub display
High quality finish
Model image display
Smooth non-contact stick potentiometer
Shoulder switch upgrade / replacement
Four rear sliders (paired)
Vibration alert
Voice function
Telemetry system
Four stick modes (1-4)
MicroSD card software update
High capacity LiPo
USB-C charging
Earphone jack
Calendar clock
S.BUS I/F enabled
Wireless trainer system
±240 step sub trim
Sub trim balance
DLPH-2 settings
Receiver mode-setting port
Gyro setting for CGY755 / 760R / 770R / GYA553
8 flight conditions
30 pre-programmed mixers
10 free programmable mixers
Retract and door sequencer
13 fixed-wing types
3 fixed-wing tail types
2 fixed-wing rudder types
8 helicopter swash types
Supports 14 telemetry sensor types
GPS enabled
Key Programming Features (for full list see manual):
Model name (15 characters)
Sub trim
Sub trim balance
Servo reverse
Fail-safe
Exponential
Throttle cut
End point / ATV (30 - 140%)
Servo speed
Trainer function
Servo monitor
Trim setting (step, rate, mode)
Data editor (for S.Bus equipment)
10 programmable mixers
30 pre-programmed mixers
Aileron differential
Air brake
Flap trim
Flap setting
Butterfly
Camber mix
Camber flap-elevator
Elevator to camber
Aileron to camber flap
Aileron to rudder
V tail
Ailvator
Winglet
Aileron to brake flap
Snap roll
Servo monitor
Twin timers
Stick alarm
Battery fail-safe
Gyro sense
Multi engine
Motor mix
Condition name
AFR (dual rate)
AFR (curve mode)
AFR curve point number (17 points)
Logic switch (condition switch only)
Acceleration mixing
Pitch curve / pitch trim
Throttle curve / throttle hover trim
Pitch to needle mix
Revolution mix
Swash ring
Idle down
Throttle limiter
Swash setting
Swash AFR
System timer
Function setting
Governor
Telemetry functions:
Temperature
RPM (magnetic & optic)
Altitude
GPS
Voltage
Receiver battery
Current
Data logging
What's in the Box:
T26SZ 26-channel transmitter

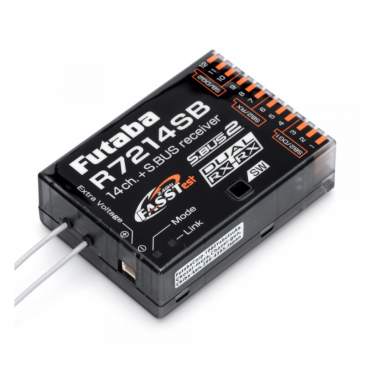

R7214SB receiver
7.4V 2000mAh Li-Po Tx battery pack
USB-C charge lead
Neck strap
Tool set
FP05003225-3
